Making Tube Yarn into Bobbin Yarn with Cone Winding Machine

Product Description

Product Description

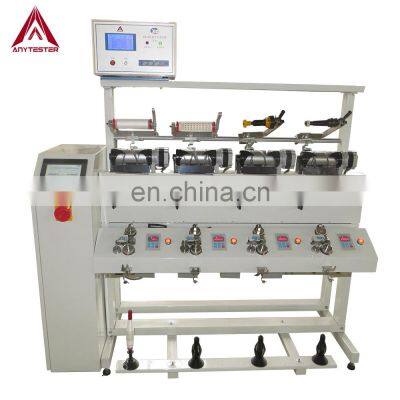

Product DescriptionAT209 Lab Cone Winding Machine is a specified equipment in the textile industry as the bridge from the spinning of yarn to the manufacturing of fabric. It is the final process in the spinning of yarn to use tube yarn/cop to make bobbins/cones of large capacity for the manufacturing of fabric. The purpose of winding is to produce bobbin/cones of large capacity and to eliminate faults on yarn. For other purpose of loose winding before dyeing or compact winding after dyeing, please inform us before ordering. FeaturesTouch Screen ★ Two control modes: uniform control on touch screen (optional) for spindles on each side and independent control on control panel for each spindle;★Automatic length setting up to 999999 meter;Variable-frequency Motor ★DC brushless motor to independently drive each grooved drum with adjustable winding speed;Optical Yarn-breaking Detector★Microcomputer controlled anti-aliasing; ★ Optional knotter and optional electronic yarn cleaner;★Optional bobbin clamps for different bobbins;★ Optical yarn breaking detector for each spindle;Air SplicerElectronic cleaner controllerSpecificationsModelAT209Number of spindles4, 6, 12, 24, 36, ..., 108, 120Grooved drumO/D82mmPitch: 2.5×147Take-up package3º30´, 4º20´,5º57´,9º15´or cylindricalMax. package diameter¢280mmMax. length setting999999 meter, electronic settingDrive modeDC brushless motor with adjustable speedMax. winding speed1100meter/minuteYarn-guiding traverseStandard 147mmRadial anti-aliasing systemMicrocomputer controlRated power60W/spindle at max. speed Power supplyAC220V 50Hz, single-phasePacking & DeliveryPackaging DetailsThe normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.PaymentPayment ItemT/TEXW 30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance,paid the balance against copy of B/LCIF30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance,paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 50,000usdDelivery Time7~10 days after receiving payment for one containerRelated ProductsOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productContacting usLily ChengWebsiteMobile Phone+86 180 5517 3820Whatsapp+86 180 5517 3820Skype1933039910@qq.comWechat+86 180 5517 3820
