Product Details
Product Description
Product Description
Grade: AgCuTi4.5
Custom processing: Yes
Viscosity: 300 (Pa·S)
Granularity: 100/300 (um)
Alloy composition: silver copper titanium
Active: 100
Type: Powder/Paste/Foil
Cleaning angle: 0
Melting point: 770-810℃
Type: Solder
Working temperature: 830-930 (℃)
Scope of application: diamond/carbon/graphite-metal, ceramic-ceramic brazing, ceramic-metal brazing, metal-metal brazing, etc.
Specifications: 10g, 100g, 200g, 500g

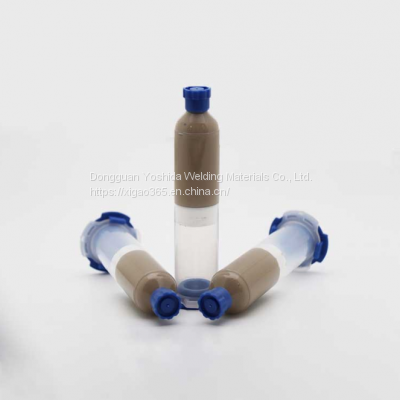

AgCuTi silver copper titanium solder paste/solder powder/active solder
Chemical composition chemical composition（wt%）
Ag
| Cu
| Ti
| O
|
68.7-70.7
| a small amount
| 4.0-5.0
| ≤0.05
|
Material properties
solid-liquid phase℃
| brazing temperature℃
| powder shape
| Bulk Density g/cm3
| powder sieving（μm）
| other forms
|
770-810
| 830-930
| spherical
| ≥3.5
| 100/300
| powder/paste/foil
|
Material Application
Silver-based active solder, suitable for vacuum brazing connection of the following material combinations: diamond/carbon/graphite-metal, ceramic-ceramic brazing, ceramic-metal brazing, metal-metal brazing, etc., good wettability, strength higher
Product Advantage
Silver solder has excellent technological properties, low melting point, good wettability and caulking properties, corrosion resistance, easy electrical conductivity, high mechanical strength, good plasticity, suitable for a variety of brazing methods, and can be brazed such as stainless steel, carbon steel, Most ferrous and non-ferrous metals such as cemented carbide, copper and copper alloys. The silver brazing filler metal can be further added with elements such as indium, tin and nickel to form a multi-element alloy brazing filler metal to meet various special performance requirements. Most solders need to be used in combination with flux to obtain stable and reliable joints.
