Easy-Operated High Measuring Accuracy Intelligent Instrument Digital Rotary Viscometer

Product Description

HENWI TECHNOLOGY Manufacturer of Cosmetic | Pharmacuetical | Food | Daily Chemical industrial | GMP Standard

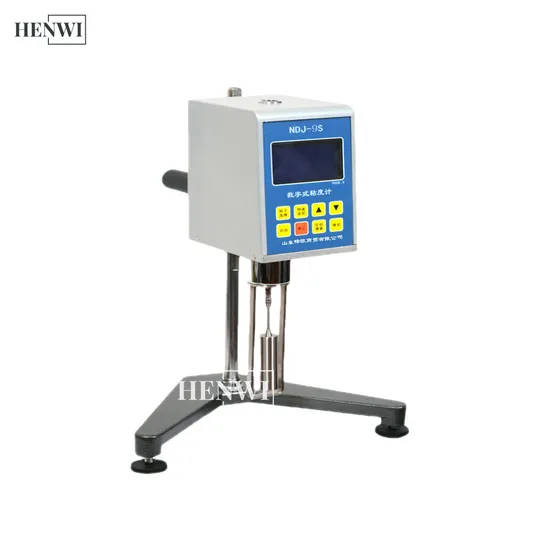

Product Description Digital Display Rotary Viscometer / Rotational Viscosity Meter
Rotation Viscometer is a novel instrument to be used in measuring the viscous resistance and absolute viscosity of fluid. It is widely applicable to determine the viscosity of various kinds of fluids, such as grease, paint, plastics, food, products, pharmaceuticals, bonding agent, etc
Feature 1. This model is suitable for measuring medium and high viscosity liquids. 2. It can be used as a stand-alone computer, or it can be connected to a micro printer and a computer to realize data collection. 3. The application of the company's invention patent overcomes the disadvantage that domestic instruments can only sample once per revolution, and realizes the technology of multiple samples per revolution. 4. The high subdivision drives the stepping motor to rotate, the speed is accurate and stable, and the AC voltage frequency change does not affect the accuracy of the viscosity measurement. 5. For thixotropic non-Newtonian liquids, the timing function of the instrument can ensure good consistent data. 6. With humanization, personalized design, 0.1-99.9RPM speed stepless setting. The LCD liquid crystal has a blue backlight function, which directly displays the viscosity, speed, torque of the centimeter, and the measurable viscosity value and temperature value of the rotor at the current speed. The viscosity value shows continuous change. If the measurement range is exceeded, an alarm will sound. 7. SNB data acquisition and drawing software can be purchased for data acquisition and data analysis, and a miniature monochrome printer can also be purchased for timing printing of measurement results. 8. The full scale and linearity of the instrument are all calibrated through the computer interface, and its measurement performance and functions have reached the advanced level of the same type abroad. 9. The built-in RTD temperature probe monitors the sample temperature in real time, with an accuracy of 0.1°C and a temperature range of 0-100°C. 10. Using 16-bit microcomputer processor as the core, high subdivision driving stepping motor, digital LCD with blue backlight function. 11. Different standard rotors can be selected according to needs. 12. According to the needs, the standard materials of the Bureau of Metrology can be purchased to calibrate the viscometer to make the inspection level in line with international standards.
Application Detailed Photos
Product Parameters

Machine Name	Digital Display Rotary Viscometer / Rotational Viscosity Meter
Model	HW-NDJ-5S	HW-NDJ-8S	HW-NDJ-9S
Test Range	10-100000 mPa.S	10-2000000 mPa.S	10-6000000 mPa.S
Viscometer Rotor Speed	6/12/30/60 RPM	0.3/0.6/1.5/3/6/12/30/60 RPM	0.1/0.3/0.6/1.5/3/6/12/30/60 RPM
Rotor Types	1#, 2#, 3#,and 4# Rotors (0# Is Optional Accessory)
Accuracy	± 3%
Viscometer Reproducibility	±0.5%
Machine Size	370*325*280mm
Machine Weight	10KG
Temperature Detector Range	-55~99ºC( temperature detector is optional)
Port	RS232

HW-NDJ-5S
Rotor Speed	0#	1#	2#	3#	4#
6 RPM	100	1000	5000	20000	100000
12 RPM	50	500	2500	10000	50000
30 RPM	20	200	1000	4000	50000
60 RPM	10	100	500	2000	10000

HW-NDJ-8S / HW-NDJ-9S
Rotor Speed	0#	1#	2#	3#	4#
0.1 RPM	6000	60000	300000	1200000	6000000
0.3 RPM	2000	20000	100000	400000	2000000
0.6 RPM	1000	10000	50000	200000	1000000
1.5 RPM	400	4000	20000	80000	400000
3 RPM	200	2000	10000	40000	200000
6 RPM	100	1000	5000	20000	100000
12 RPM	50	500	2500	10000	50000
30 RPM	20	200	1000	4000	20000
60 RPM	10	100	500	2000	10000
