270 degree wide-angle monitoring lidar sensor distance detection

Product Description

Function Features:
1) Has 270.scanning range;
2) Configure the LS01 from a laptop or computer;
3) Different areas can be set (warning area, danger area);
4) Communication interface: USB, 485 (special 485 cable accessories required,Please refer to the appendix);
5) With a variety of input/output modules, easy input/output type switching;
6) With 2 OSSD outputs and 1 AUX output, OSSD output and AUX canindicate different zone types, etc;
7) Output overload protecte;
8) With product operating status OLED display and LED display;
9) Product features can be configured via keystrokes;
10) High efficiency, good concealment, strong anti-interference ability,small size, light weight and reliability.

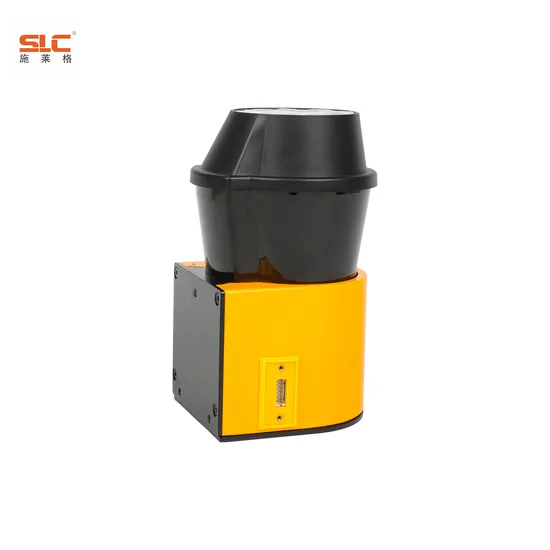

Product images

Product parameter
Project		Parameter
OFF indicates the maximum voltage		2.0 V
Maximum leakage current		1 mA
Maximum capacitive load		1μF
Maximum cable length		20 m
Shell protection		IP65
Operating ambient temperature		-10 ºC +50 °C( Freeze-free)
Storage ambient temperature		-25 ºC +60 °C( Freeze-free)
Operating relative humidity		35 ~85 % Rh(non-condensing)
Storage relative humidity		35 ~95 % RH
Bient light selfburning lamp		1500 lx or below
Vibration		10 ~ 55 Hz, 0.7mm compound amplitude, 20 frequency sweeps in X, Y and Z directions
Impact		100 m/s (about 10 G) 16 ms pulses, 1000 in each axis in the X, Y and Z directions
Material		Main device (internal support pressed wrong aluminum, stainless steel shell)
		Mask PC
Project		Parameter
Minimum measured object		Diameter 30, 40, 50, 70, 150 mm (depending on setting)
Detectable Angle		270(° -45°~ 225°)
Response time (ON to OFF)		Default: 120ms(40 ms to 400 ms)
Recovery time (OFF to ON)		Default: 120ms(40 ms to 400 ms)
Standard scan period		40ms
Maximum monitoring area		50m(standard white reflective panel)
Maximum detection distance(According to test specimen size)		4m (40mm specimen) 8m(80mm specimen) 12m(120mm specimen)
Type of light source		905nm infrared laser
Laser classification		1 type IEC / EN 60825-1: 2014
Rated supply voltage		24 V DC ±10 %
Power consumption		Max. 10W (excluding load)
Output mode		Two-way PNP or NPN (can be set according to the software)
Maximum load curren		t 100 mA
Residual voltage (ON period)		Max 2.5V

Factory show
Products Certification
Company Cooperative units
Our Exhibition
Q: Can i get some samples ?/Do you offer samples available?
A: Yes, Paid samples are available, sample cost can be deducted at formal order.
Q: How is the warranty?
A: 18 months warranty. We will take care of all quality issues during this period but the man-made damage, improper operation and force majeure will be excepted.
Q:How about the quality of the products?
A:Products have the certification of CE,CCC,CQC,EU,TUV,UL, and Safety Level achieved Ple,SIL,Type 4,Cat.4 etc.
Q: What is the quality guarantee?
A: ISO 9001-2015 ,ISO 14001 -2015 certified manufacturer, strict quality control system. Besides calibration, each set product we also do aging test before shipment.
Q: Do you have any products in stock?
A: Two factories in stock, fast delivery.
Q: Can I be your distributor?
A: Yes, we are looking for distributors in oversea market and offer full support.

Q: Do you accepte ODM and OEM ?
A: Please contact us for details.

---
