Sts PLC / RF Prepiad Three Phase Energy Meter

Product Description

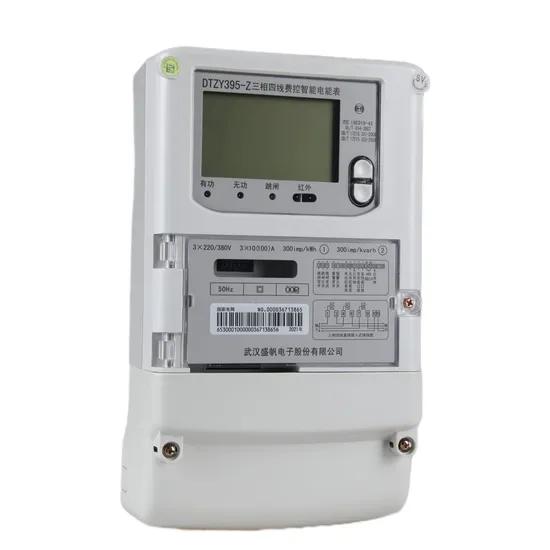

Three phase keypad prepaid energy meter
Introduction:
DTSY395 Three phase keypad prepaid energy meter is a keypad type, automatically connection or disconnection prepaid electricity meter. It can be top up with SanfranPay vending software directly and communicate with AMI system via LORA-RF or PLC module. This meter is comply with STS standard, can be widely used for counting the electricity consumption of users over a period of time.
Functions and Features:

★Meter recharge by inputting TOKEN	★Utilities can set TOU price into meter on request
★Ingress protection IP54 waterproof	★Anti-tamper magnetic field protection
★Up to 8 years battery life	★MD(maximum demand measurement)
★Remote connection/disconnection	★Low credit alarm
★Real-time clock	★Overdraft collection
★Check data by inputting the short code	☆LORA-RF communication

★ Basic features ☆ Extended features
Specification:

Electrical	Nominal Voltage	3*230V
	Working Voltage Range	70%~120%Un
	Frequency	50-60Hz
	Active Energy Constant	400imp/kWh
	Power Consumption in Voltage Circuit	<2W <8VA
	Power Consumption in Current Circuit	<1VA
	Operation Temperature Range	-25ºC-70ºC
	Storage Temperature Range	-40ºC-85ºC
Electric Magnetic Compatibility	AC Insulation Strength	4kV at 50Hz during 1min
	Impulse voltage 1.2/50 us mains connections	8kV
	Electrostatic Discharges	Contact discharge 8kV
		Air discharge 16kV
	Electromagnetic RF Field	27MHz-500MHz 10V/m
		100KHz-1GHz 30V/m
	Fast transient burst test	4kV
	Protection	Class II

Parameters:

Model	DTSY395
Current(Imax)	3*10(100)A
Accuracy class	Active energy: Class 1.0

Dimension:
Wiring Diagram:

---
