US$11,000.00-38,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Ring Die Pelleter
Bulking Machine Type
Single Screw Bulking Machine
Expanding Method
Wet Expansion
Applicable Materials Shape
Powder
Name
Wholesale Mini Poultry Feed Mill Machine
Application
Poultry, Chicken, Cattle, Livestock etc
Ring Die Diameter
320-768mm
Delivery Time
Within 30 Days
Transport Package
Wooden Case (Plywood)
Specification
CE certificate
Production Capacity
10 Set/Month
Product Description

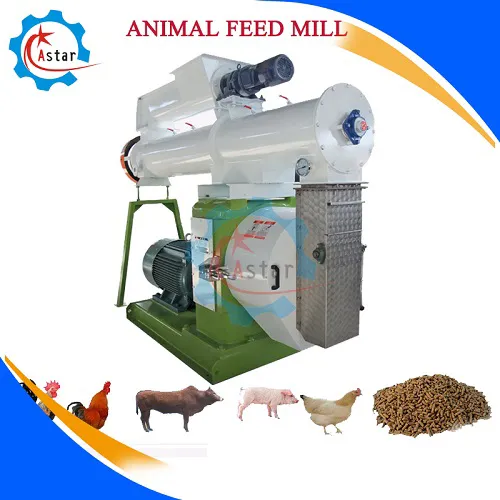

Wholesale Mini Poultry Feed Mill Machine
1. Wholesale Mini Poultry Feed Mill Machine :
1. Widely applied product with mature technology .
2. The main driving adopts high-precision gear drive, so that the output is improved by about 20% when compared with that of belt drive.
3. Imported high-quality bearing and oil seal are adopted to ensure efficient, stable and low-noise whole machine operation . the granulating room is equipped with air suction temperature reducing system .
4. The feeder adopts variable-frequency and variable-speed motor to ensure the quality of discharged particles .
5. Ring dies with multiple kinds of bore diameters are optional . and high-quality craft ring dies are adopted, so that the service life is long. The discharged particles are smooth and the quality is high .
6. International advanced compensation type snakelike spring coupling has the propertied of novel and compact structure, high safety, low noise and low fault rate.
7. Plus-size conditioner and jacket type conditioner are selectable to strength the particle conditioning effect.
2. SZLH Series Wholesale Mini Poultry Feed Mill Machine Parameter:
| Model | SZLH320 | SZLH350 | SZLH400 | SZLH420 | SZLH508 |
| Capacity | 2-5T/H | 1.5-8T/H | 2-10T/H | 3-12T/H | 4-20T/H |
| Main Motor Power | 37KW | 55KW | 75/90KW | 110KW | 132/160KW |
| Screw Feeder Power | 0.55KW | 0.75KW | 0.75KW | 1.5KW | 1.5KW |
| Conditioner Power | 2.2KW | 2.2KW | 2.2KW | 5.5KW | 7.5KW |
| Ring die inner diameter | 320mm | 350mm | 400mm | 420mm | 508mm |
| Ring die rotational speed | 305PRM | 336PRM | 307PRM | 287PRM | 287PRM |
| Roller outer diameter | 140mm | 165mm | 190mm | 206mm | / |
| Dimension | 2300*1000*2100 mm | 3200*1100*1700 mm | 3200*1300*1900 mm | 3500*1300*2800 mm | 3500*1500*2900mm |
Pellets diameter: 2mm, 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm, 10mm
Pellets shaping rate: ≥95%
Pellets stability in water: ≥20Min
Noise: ≤86dB(A) ≤90dB(A)
Roller working temperature: ≤85ºC
Steam working pressure: 0.1-0.4Mpa
Steam temperature: 130-150ºC
3. SZLH Series Wholesale Mini Poultry Feed Mill Machine More Photos :
Gear Oil Cooling Device
Double Layer Condtioner
Stainless Steel Ring Die
Ring Die Lifting Device
Ring Die Pellet Mill Wit hDouble Layer Condtioner
Any more information you need Wholesale Mini Poultry Feed Mill Machine , please feel free to contact with us.
Mr. Jason
Chongqing Qiaoxing Machinery & Equipment Company
Website: http://qiaoxingmachinery.en.made-in-china.com
Add: Room 6088, Building 4th, No. 319 of Haier Road in Jiangbei District, Chongqing Municipality, Chongqing, China
Mobile:0086-15178920906
>>
