US$9,500.00-45,000.00
|
1 Set
(MOQ)
|
Basic Info.
Feeding Capacity (Kg)
600
Compacted Concrete (L)
250
Discharging Power (Kw)
Pneumatic Discharging
Transport Package
Stand Seaworthy Packing
Specification
CE, ISO, SGS
Product Description
Product Description
Features

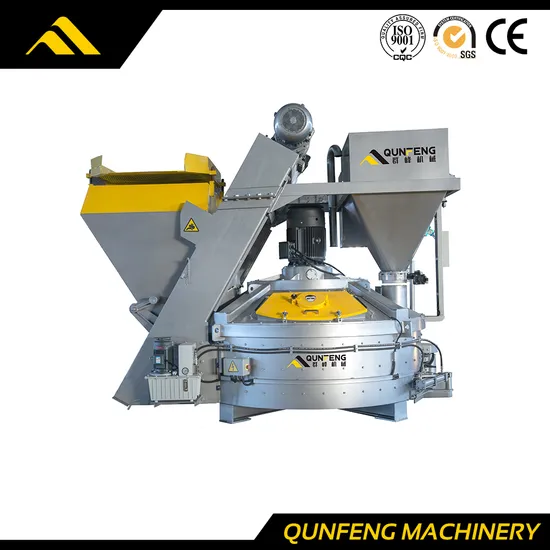

QMP Series Planetary Concrete Mixer is suitable for all high quality concrete with high speed (hard, semi-hard and plastic concrete). It's can be used not only for concrete mixing, and also mix glass, ceramic, refractory materials and other products.
1) The specially designed mixing device makes the mixing speed faster and the more evenly; the mixing blade is more wear resistant;
2) Flexible couplings and fluid coupler (optional) can protect the drive system from overload shocks;
3) We developed special gearbox, making the power distributed to the mixing device effectively and ensure the mixer working efficient with low noise even under harsh production conditions;
4) Large-size access door is easy for maintenances and cleaning;
5) There are high pressure cleaning device and water content tester for choice;
6) From most suitable selection to customized for special applications, as well as maintenance and service, we are able to provide a full range of technical support and assurance.
| Items | QMP250 | QMP330 | QMP500 | QMP750 | 1000 | 1500 | 2000 | 2500 | 3000 |
| Filling Volume (L) | 375 | 500 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 |
| Feeding Capacity (Kg) | 600 | 790 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 |
| Compacted Concrete (L) | 250 | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 |
| Mixing Power (kW) | 11 | 15 | 18.5 | 30 | 37 | 55 | 75 | 90 | 110 |
| Mixing Star/Mixing Blade (Qty) | 1×2 | 1×2 | 1×2 | 1×3 | 2×2 | 2×2 | 3×2 | 3×3 | 3×3 |
Side Scraper/Discharge Scraper (Qty) | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/2 | 1/2 | 1/2 |
| Discharging Power (kW) | Pneumatic Discharging | 2.2 | 2.2 | 2.2 | 3 | 3 | 4 | 4 | 4 |
| Weight (Kg) | 1500 | 2000 | 2500 | 3500 | 5500 | 6500 | 8500 | 10500 | 11000 |
