Communication High Quality 24AWG 305m UTP LAN Cable Unshielded Twisted Pair Copper Wire Cat5e CAT6 Network Cable

US$1.99
1-999 Meters
US$0.99
1,000+ Meters

Basic Info.

Model NO.
CAT6 Network Cable
Cover Material
PVC
Type
Cat 6
Material Shape
Round Wire
Conductor Type
Stranded
Wire Core Material
Bare Copper Wire
Certification
CE, ISO, RoHS
Model
Cat5e & CAT6
Brand
Nh-Link
Product Name
Communication High Quality 24AWG 305m UTP LAN Cabl
Style
Network Cable
Product
Network Patch Cord
Color
Blue, Grey, Green,Red or Others
Transport Package
Cartons
Specification
24 AGW
Trademark
NH-LINK
Origin
Shenzhen, China
HS Code
8544421900
Production Capacity
50000PCS/Day

Product Description

Network Cable Specification
Item Name FTP Cat6 Cable
TYPE CAT6 Single Shielded
Conductor BC (Pure Copper)
CCA(Copper Clad Aluminum)
Number of Conductor 4Pairs / 8 Cores
Specification 24AWG(4P*2*0.50MM) , As your request
Insulation Material HDPE
PE Cross Plastic Material
Single Shielded Polyester film + Al Foil
Drain Wire CCA
Jacket PVC/LSZH (Indoor)
PE (Outdoor)
Color Grey , Blue , Black etc, As your request
Operating Temperature -20 °C - +75 °C

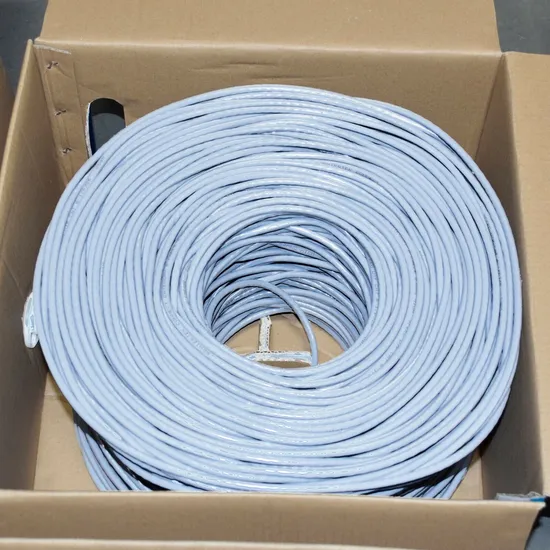

Packaging 305M/Roll (Indoor)
305M/wooden drum (Outdoor)

Technical Performance
Frequency (MHz) RL >=dB ATT<=dB NEXT >=dB ACR (dB) PSNEXT>=dB ELFEXT>=dB PSELFEXT>=dB Delay(ns)
1 20 2 74.3 72.3 72.3 67.8 64.8 570
4 23 3.8 65.3 61.5 63.3 55.8 52.8 552
8 24.5 5.3 60.8 55.4 58.8 49.7 46.7 546.7
10 25 6 59.3 53.3 57.3 47.8 44.8 545.4
16 25 7.6 56.2 48.7 54.2 43.7 40.7 543
20 25 8.5 54.8 46.3 52.8 41.8 38.8 542
25 24.3 9.5 53.3 43.8 51.3 39.8 36.8 541.2
31.25 23.6 10.7 5 41.2 49.9 37.9 34.9 540.4
62.5 21.5 15.4 47.4 32 45.4 31.9 28.9 538.6
100 20.1 19.8 44.3 24.5 42.3 27.8 24.8 537.6
150 18.9 24.7 41.7 16.9 39.7 24.3 21.3 536.9
200 18 29 39.8 10.8 37.8 21.8 18.8 536.5
250 17.3 32.8 38.3 5.5 36.3 19.8 16.8 536.3
