Long Detection Distance Standalone Ceiling Mount Infrared PIR Motion Detector

Product Description

KA-S75B Long Detection Distance Standalone Ceiling Mount Motion Detector specifications:
1) Power source:110V/AC-240V/AC
2) Power frequency:50/60Hz
3) Rated load:2000W max.
4) Detection range:360 degree
5) Light control:<10LUX-2000LUX(adjustable)
6) Time delay:10sec to 15min(adjustable)
7) Detection distance:2-16m(adjustable)
8) Installation height:2-4m
9) Detection speed:0.6-1.5m/s

Package:
1) White box or customized color box
2) Carton size: 50*38.5*36 cm
3) Gross weight:15KGS
4) Quantity/carton:50pcs

Product introduction:
KA-S75B is a new saving-energy switch, it adopts good sensitivity detector, integrated circuit and SMT. It
gathers automatism, convenient safe, saving-energy and practical functions. One detector inside compose a
wide range detection field, it utilizes the infrared energy from human as control-signal source, it can start the
load at once when one enters detection field. It can identify day and night automatically. It is easy to install and
used widely, possessing the functions of power show and detecting show.

KA-S75B function:
1) Identify day and night automatically. Can adjust light-control according to your desire: when turn to SUN
(max), it will work in the daytime and at night. When turn to MOON (min), it will only work under less than 3LUX
circumstance. As for Adjustment, please refer to testing way.
2) Detection range can be set according to installation position and detection field.
3) The detection show: the LED will flash two times per second when receiving the signal.
4) Time setting is added continually: when it receives the second induction signal after the first inductor, it will
compute time once more on the rest of the first time setting basic. (Set time)
5) Time setting adjustment: it can be set according to your desire. The minimum is 8±3 sec; the maximum is
7±2min.

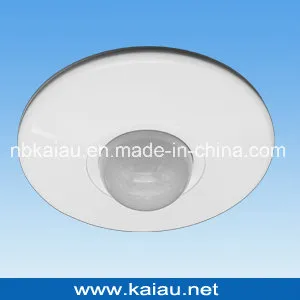

KA-S75B Actual photos:

---
