Heavy-Duty Vertical Milling Machine with Enhanced Lifting Table Design, CNC Machine, Milling

Product Description

Introducing the 4s Vertical Lifting Table Milling Machine, an epitome of premium metal milling craftsmanship, meticulously crafted in Taiwan. This cutting-edge marvel is engineered to offer unmatched precision and efficiency, setting a new benchmark in the realm of metalworking.
Product Description
Mechanical CharacteristicMeticulously crafted with the finest Meehanna cast iron, this machine stands as a testament to unparalleled rigidity and stability. Its robust build ensures no deformation over time, guaranteeing a powerhouse of reliable performance.Equipped with a spindle reinforced by a precision bearing combination, this machine unleashes formidable cutting force paired with extraordinary accuracy, redefining superior machining capabilities.Boasting an innovative inverted hanging design, the end milling head delivers exceptional precision and user-friendly operation, coupled with convenient braking. Tailored solutions await those seeking bespoke features.The three-axis screw nuts are crafted from elite phosphorus meter copper, offering unparalleled wear resistance and a long-lasting lifespan.The XY shaft slide benefits from high-frequency annealing treatment, which dramatically enhances tail wear resistance, substantially extending its operational longevity.A sophisticated integrated lubrication system assures seamless sliding, optimizing machine performance to perfection.
Product Parameters
1.Milling Machine Rotation Speed
Rotation speed is pivotal, directly shaping processing efficiency and cutting force. Higher rotation amplifies cutting prowess, refines surface quality, and minimizes residual stress on components.
Milling Machine Cutting Speed Cutting speed is essential for processing velocity and quality. The optimal speed is contingent on material hardness, cutter composition, and machine type, ensuring top-tier results. Milling Machine Processing Accuracy Processing accuracy is a cornerstone performance metric, influencing the quality of machining and parts. It's affected by cutting force, machine and tool rigidity, workpiece clamping precision, and initial machine tool errors. Milling Machine Precision Stability Precision stability ensures unwavering consistency in machine accuracy during operation. It's influenced by initial tool imperfections, machine tool deformation, and tool wear, playing a crucial role in maintaining quality.

Product Name
Product Name	Milling machine
Product model	4S
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	720MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	320MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-490MM
Principal axis coefficient	Spindle taper	R8
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	180° around / 45° front and back
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*65MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1280kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	Clamp plate	1
	11, chuck	1

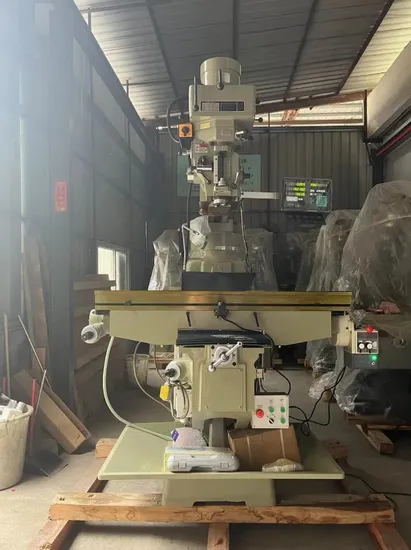

Detailed Photos
Packaging & Shipping
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments, requiring a 40% initial deposit upon ordering and the remaining 60% balance to be paid before shipment. This payment structure ensures a smooth transaction and timely processing of your order.
2. What are your trade terms?
A: We offer flexible trade terms including FOB, CFR, and CIF, giving you the freedom to choose the option that best suits your logistical needs and preferences.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we guarantee delivery within 30 days. For custom or specialized machines, additional time may be required. Please align your order placement with our provided delivery schedule to ensure timely receipt.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, ensuring accessibility for all customers. We also offer a comprehensive one-year warranty, reflecting our commitment to quality and customer satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a robust wooden case, guaranteeing it arrives in pristine condition, ready for immediate use upon receipt.
6. How can I choose the most suitable machines?
A: Provide us with your specific requirements, and we will recommend the most suitable model tailored to your needs. Alternatively, you may select your desired model directly from our extensive range of options.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for your specific applications, ensuring optimal performance and efficiency.

---
