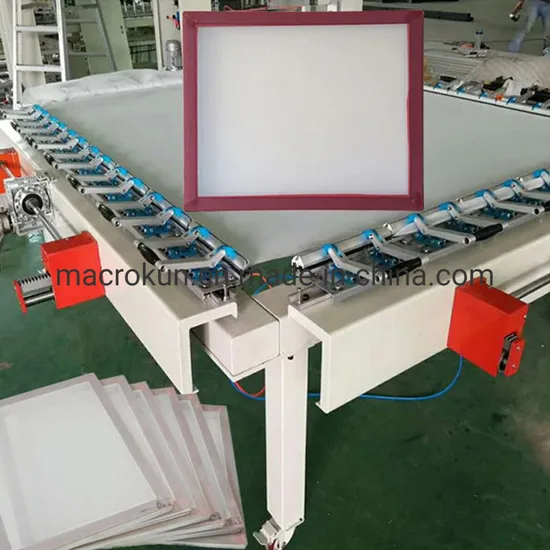

Mk-1215dw Double Warm Clamp Screen Stretching Machine Manual Type

Product Description

Product Code	008008
Product Name	M&K-1215 Dw Double Clamp Worm Screen Stretching Machine
HS code	8442302900
Max working area	1200x1500mm
Maximum tension	45N
Working air pressure	0.40-7MPa
Net weight	230KG
Gross weight	250KG
Packing size	170*60*60cm
Packing volume	0.61m³
Packing material	Export wooden case

The beam with 1200*80mm special square tube production, tension up to 45N, long-term high tension pull the net beam is not deformed. Built-in track skateboard, four sides of the beam can be movable type, flexible and convenient to shrink, according to the size of the network frame to adjust the net area, effectively save the yarn.
The use of material system pull net chuck, chuck base plate with 45 thick steel plate bending welded together, can withstand long-term high tension, chuck with the import of rubber strips, do not fall of, do not hurt the mesh, not retreat.
The use of Taiwai imported turbine rod gear box drive, the use of gears, racks and linear bearings do travel guide, changing the traditional chain drive, this design is more evenly, higher precision, pull the net more light.
With four synchronous top mesh cylinder, so that when the network to ensure quality.

---
