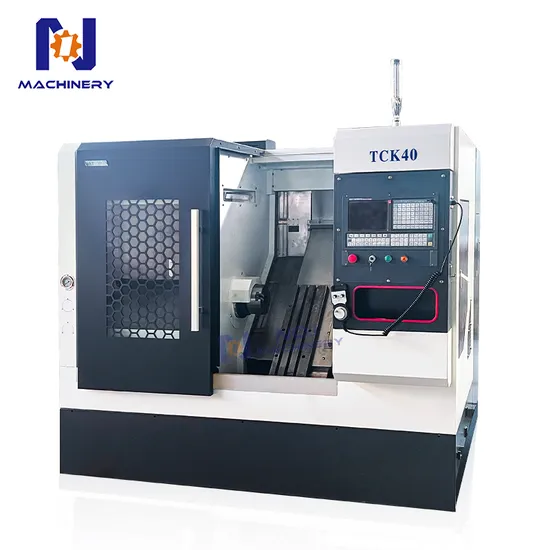

Tck40 CNC Lathe Slant Bed CNC Turning Center Lathe CNC Machine Machine Tool CNC Lathe

Product Description

Product Description
The TCK40 series multifunctional CNC lathe adopts a box-shaped structure and strong cast iron (HT-300) for the bed, and is cast with one-piece casting technology. It is clamped and processed in one time by a high-precision machining center. Therefore, it has the characteristics of strong overall rigidity, good machine tool accuracy retention, and high reliability.
Product Parameters

PARAMETER ITEM	UNIT	TCK40
Maximum swing diameter on bed	mm	Φ450
Maximum cutting diameter bar	mm	Φ120
Maximum cutting length	mm	325
X-axis travel	mm	500
Z-axis travel	mm	325
X-axis moving speed	mm/min	20000
Z-axis moving speed	mm/min	20000
Handwheel	mm	0.001/0.01/0.1
X, Z feed speed	mm/min	0~5000
X, Z manual feed speed	mm/min	0~1260
X-axis repeatability positioning accuracy	mm	0.005
X-axis positioning accuracy	mm	0.01
Z-axis repeatability positioning accuracy	mm	0.006
Z-axis positioning accuracy	mm	0.015
Spindle speed	rpm	35-3000
Maximum spindle torque	N.m	35
Spindle nose		A2-5 (optional A2-6)
Spindle through hole diameter	mm	Φ52
Hollow hydraulic chuck through hole diameter	mm	Φ40
Chuck		6" (optional 8")
Number of tool holders		3 knife racks
Tool change time	s	0.25
Tool installation dimensions	mm	20×20
Borrowing tool holder installation diameter	mm	Φ25
Main motor power	kw	5.5 (4500rpm)
Main motor torque	N.m	35
X-axis feed motor power	kw	1.5
X-axis feed motor torque	N.m	7.5
Z-axis feed motor power	kw	1.5
Z-axis feed motor torque		5
Coolant capacity	L	200
Motor type (1HP)	kw	0.125
Machine length*width*height	mm	2250*1850*2000
Machine weight	kg	16000

Detailed Photos
1.Uses hollow (optional solid, chuck) hydraulic chuck
2.customized installation of various tool holders/turrent
3.Optional 4/6/8-station electric turret, 8-station servo turret
4.GSK original servo main motor
5.Guangshu 980TB3I system, optional GSK/Siemens/Fanuc/Mitsubishi
6.HT300 Casting machine



Packaging & Shipping

Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 30,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.

FAQ
1. who are we?
We are based in Shandong, China, start from 2016,sell to Domestic Market(65.00%),Western Europe(10.00%),Mid East(10.00%),Africa(3.00%),South America(2.00%),Eastern Europe(2.00%),South Asia(1.00%),Eastern Asia(1.00%),North America(1.00%),Oceania(1.00%),Southern Europe(1.00%),Central America(1.00%),Northern Europe(1.00%),Southeast Asia(1.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Numerical Control Machine, Metal Cutting Machine Tool, Metal Forming Machine Tool, Machining Center, CNC Lathe
4. why should you buy from us not from other suppliers?
We specialized in manufacturing & exporting machine tools to the world for many years. Our factories are keeping develop and produce innovative high-tech machine tools for the metal-working industries every year. We also provide excellent after sales.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDU,Express Delivery
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
