1bjx Series Mounted Middle-Duty Disc Harrow (China DISC HARROW MANUFACTURER)

Product Description

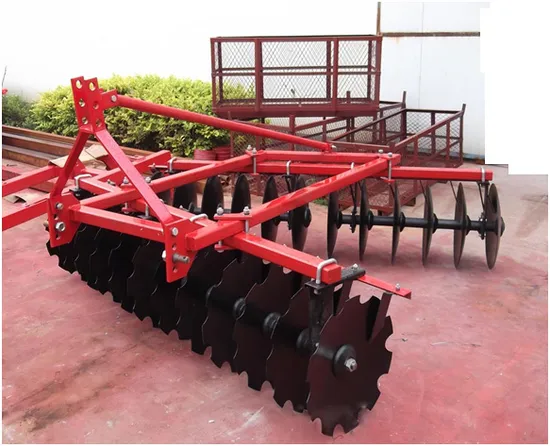

1BJX SERIES MOUNTED MIDDLE-DUTY DISC HARROW
(CHINA DISC HARROW MANUFACTURER) Product:
1BJX series middle-duty disc harrow's front gangs are assembled with scalloped disc,and rear gangs with plain disc.The harrows are adopted a whole frame made of quadrangular steel tubes by welding, So their structures are simple and reasonable, strong and durable. The bearing is ball bearing with sphere-outside and square-inside, its rated load is large, trailing resistance is small, sealing is good. They're convenient to operate and maintain. Efficient in pulverizing and penetrating into the soil and leaves the land with a smooth, even surface. All these satisfy the agricultural requirements of intensive cultivation.
1BJX series disc harrow are suitable for pulverizing and loosening clods on sticky heavy clay soil after plowing and for planning the land before sowing. On cultivated land, the machines can make soil and fertilizer mixed up, and clear away the stump of plants and be used instead of plow on light or medium soil and preparing seed bed for planting.
Technical parameters:

Model	1BJX-1.7	1BJX-2.0	1BJX-2.2	1BJX-2.4	1BJX-2.5		1BJX-3.0
Max. working width(m)	1.7	2.0	2.2	2.4	2.5		3.0
No. of disc	16	18	20	22	24		28
Overall dimensions(cm)	192x188x132	198x224x132	198x247x132	270x248x132	297x268x132		310x318x132
Working depth(cm)	14~18
Size of disc(mm)	560x4
Disc spacing(mm)	230
Linkage	three-point mounted
Weight(kg)	400	434	463	560	650	750
Productivity(ha/h)	1.2	1.5	1.6	1.8	1.9
Trans. Clearance(mm)	≥310	≥310	≥260	≥260	≥260	≥260
Matched power(HP)	40~50	50~65	55~70	65~80	72~90	80~100

Company information
Yucheng GerzhuoMechatronics Technology Co., Ltd. is a company engaged in research and manufacture of agricultural machinery, the national farm Machinery Project suppliers, national key projects exporting suppliers. The main products are Harrow, disk plow, Ridge machine, cultivator, Hua-Plough, seeder, trailer, rotary tiller, lawn mower etc equipment, agricultural machinery accessories include rake piece, plow piece, square shaft, Harrow Group, Harrow Teeth, soil shovel, box knife . Full specifications of mentioned products available with excellent performance, reliable quality.
