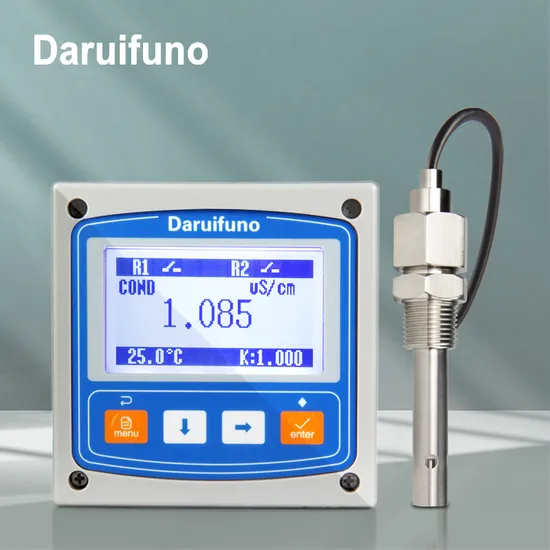

Product Description 2-electrode measurement method, it can be used with our stainless steel conductivity sensor with different K constant.
Applied to various conductivity monitoring and control occasions.
The conductivity controller can not only display the conductivity value but also display the TDS, resistivity, salinity value.
| Model | AEC1-T1 |
| Display range | Conductivity | 0.00~20.00 mS/cm Full range automatic switching |
| Resistivity | 0.00~18MΩ.cm |
| TDS | 0.00~10.00g/L |
| Temp | -10~500ºC |
| Resolution | Conductivity | 0.001µS /cm |
| Resistivity | 0.01MΩ.cm |
| TDS | 0.01mg/L |
| Temp | 0.1ºC |
| Relay control | 2 settable SPST relays with a maximum load of 3A/250VAC |
| Accuracy | 0.1% of the measuring range |
| Analog current output | 2 settable 0/4~20mA active current loop output, maximum load 1000Ω |
| Display screen | 3.2 inch LCD, adjustable backlight mode, adjustable display rate |
| Operating environment | 0~60ºC,relative humidity less than 95% RH ( no condensation) |
| Shell material | Enhanced ABS protection grade IP66 |
| Dimension | 100*100*120 mm |
| Mounting method | Panel installation (hole size 92*92 mm) |
| Power supply | 100~240VAC 50/60Hz or 18~36VDC |
