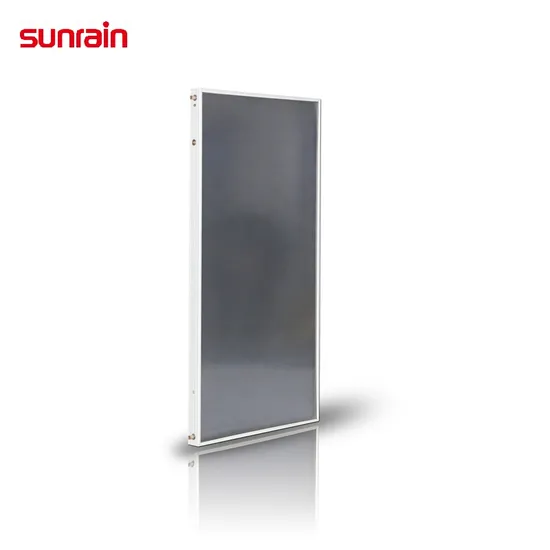

Sunrain High Efficiency Solar Collector Flat Plate Blue/Black Titanium Coating for Outdoor Household Use Solar Panel Heater

Product Description

Product Description Working Principle:
Flat plate solar collector is a device for absorbing solar radiation and transfer heat to the medium, which is a kind of special heat exchanger, the medium in the collector heat exchanges with the sun, Flat plate solar collector is composed of absorbing plate core, shell, transparent cover plate, insulation material and other related parts. Then heating circulation pipe and water tank, become a absorbing solar radiation equipment to heat the cold water.
Product Parameters

Model:	FPC200P	FPC250P	FPC300P
Dimension:	2000*1000*80mm	2000*1250*80mm	2000*1500*80mm
Aperture Area:	1.85	2.34	2.83
Certificate:	Solar Keymark
Warranty:	5 years
Absorber:	Made of Aluminum with black film and 0.4mm thickness
Cover Material:	Textured tempered glass, 3.25mm thickness
Head Pipe:	TP2 copper φ22*0.75mm
Flow Pipe:	TP2 copper φ10*0.5mm
Connector Size:	22mm no thread or 3/4 inch male thread
Max. Operation Temperature:	120ºC
Operating Fluid Pressure:	0.6Mpa
Approved Installation Angle:	Min. 15° Max. 75°
Empty Weight:	32KG	40KG	50KG
20GP/40GP/40HC Loading Qty:	112/224/272	91/182/218	81/162/196

Detailed Photos
Application
Production process Packaging & Shipping

Certification and Exhibition
Company Profile
Who are we?
Jiangsu Sunrain Solar Energy Co., Ltd, founded in 1999, is a globalized clean energy utilization company and one of the top 500 new energy enterprises in the world.
In China, Sunrain is A-share main board listed(Code:603366) company in new clean energy industry, with certified Enterprise Technology Centerand CNAS National Certified Laboratory.
We have four production bases in China, and a perfect industrial chain, processing plants and research& development centers. We will ramp up resources to develop more core technologies.
What can you buy from us?
Heat Pump, Solar Water Heater, Solar Collector, Energy storage battery and so on, we distribute our products to more than 100 countries and regions worldwide.
FAQ Q1: Are you a manufacturer?
RE: Yes, we are one of the top 5 solar water heater factories in China, with an export value of approximately 110 million US dollars in 2024.
Q2: What kinds of certificates have you obtained?
RE: We have obtained CE, ERP, KEYMARK, BAFA, SG Ready, MCS, UKCA, PED, ROHS and REACH certificates.
Q3: What is your main product?
RE: Our main products include solar water heater, solar collector and solar energy battery.
Q4: How do I place an order?
RE: Please send us an inquiry or contact us through online services; After receiving your inquiry, we will reply to you Catalogs, quotations, and other information you need.
Q5: Do you provide OEM/ODM customized manufacturing services?
RE: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard solar water heaters under your brand according to your special needs.
Q6: Can I apply to become your solar water heater distributor?
RE: We are currently looking for more solar water heater distributors worldwide, who can distribute our heat pump products in local countries/regions. Q7: I need to buy in large quantities. Can you provide a sample service?
RE: Yes, we can provide sample service, and we have engineers to help you solve installation problem.
