Paper Machine Clothing Polyester Large Loop Spiral Flat Round Yarn Dryer Fabric

Product Description

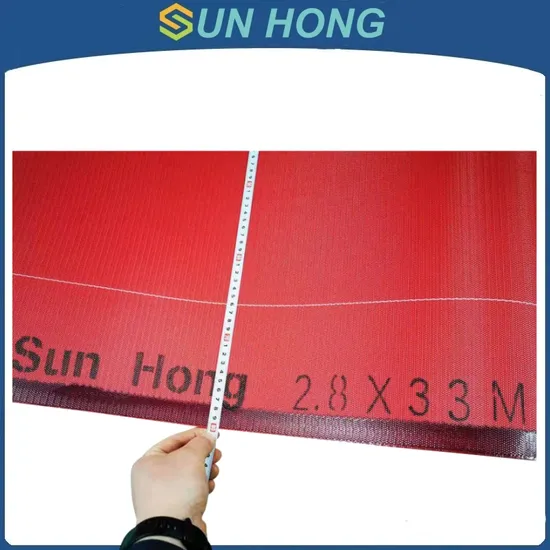

SUN HONG PAPER MACHINE CLOTHING -- Dryer Fabric
In the dryer section of paper machine, the paper sheet was transfered by dryer cylinders. The dryer fabric hold the sheet tightly in contact with the cylinders through the dryer section. Constructed of monofilaments, dryer fabrics must be heat resistant, rugged, and designed for both drying efficiency and runnability. SUN HONG provided dryer fabrics are fully resistant to hydrolysis and able to with stand all heat and humidity conditions in the dryer section. Most of the standard types of fabrics can also be made of polyester yarns. The dryer fabric mainly have two type , woven type and spiral type. Woven type dryer fabric have two stype yarn flat yarn and round yarn. Sun Hong will suggest suitable dryer fabric according to your paper machine.
Woven Dryer Fabric
1.5 Layer Flat Yarn Dryer Fabric
Warp Diameter:0.58*0.38mm
Thickness:1.65mm
Weft Diameter:0.6mm
Air Permeability :3500 m3/m2·h/220CFM
Warp Density: 17.3L/cm
Weft:16L/cm
Composition: Polyester
Interface: imported loop interface
Elongation: <0.7%
Application:Generally used in the low-temperature stage of the drying section of paper machines Double Layer Flat Yarn Dryer Fabric
Double layer series have designed especially for wider and high speed paper machine. All material are imported from Europe Portugal and Germany .
Weave structure is 2 Layers, all monofilaments. The CFM control with uniform tension distribution ensure good running stablilit.
Pin seam and spiral seam are designed with none marking, high tension and no distortion. Round Yarn Dryer Fabric
Model:SHGW22504 (round yarn)
Heddle:4 heddle
Layer:double layer
Warp Diameter:0.5mm
Thickness:1.94mm
Weft Diameter:0.5mm
Air Permeability:12000 m3/m2·h/759CFM
Warp Density:22.5L/cm
Weft Density:13L/cm
Composition: Polyester
Interface: middle loop interface
Application: paper machine dryer section
Spiral Dryer Fabric
Spiral Dryer Fabric Series have designed especially for wider and high speed paper machine. All the materials are imported from Europe , Germany. Flat Spiral leads to higher contact surface, the spiral structure makes the seam completely same with the fabric body and guarantees non-seam marking during paper making. The CFM control with uniform tension distribution ensure good running stability.
Small / Middle / Large Loop Spiral Dryer Fabric Spiral Dryer Fabric with Filler Low Permeability Spiral Dryer Fabric
Function of Dryer Fabric
The main function of the dryer fabric is to improve the contact between the paper and the dryer in the process of guiding the wet paper through the drying section, so as to obtain high output, low energy consumption and give the paper good performance.
It is made by weaving and heat setting with various plastic synthetic fibers as the main raw materials. According to the needs of special resin treatment, mesh joints are also more advanced. The fabric has the properties of heat resistance, wear resistance and high air permeability. It has obvious effect on saving energy and increasing speed. Polyester Dryer Fabric Joint Type
We provide six joint type for you choose:
1. Steel clip joint type
2. Endless type
3. Single pin ring joint type
4. Double pin ring joint type
5. Flod ring joint type
6. Spiral ring joint type
Why Choose Sun Hong Paper Machine Clothing?
Sun Hong have almost 30 years experience for making paper machine clothing including forming fabric, dryer fabric and press felt for paper machine. We have advanced weaving machine, looming machine, needling machine, jointing machine, heat setting machine and superb imported raw material monofilament to produce our fabric. We have full previous and after service to provide our customer good use experience.
Every year we attended internatial paper and pulp exhibition to meet our customer, and we also welcome our customer come to China to visit our workshop to test our fabric. Sun Hong Group always look forward to working with you. If you want to get more details ,welcome to contact us.
Imported Monofilment Raw Material
Packing & Shipping

---
