Electric Pipe Bar Bending (WG-40)

Product Description

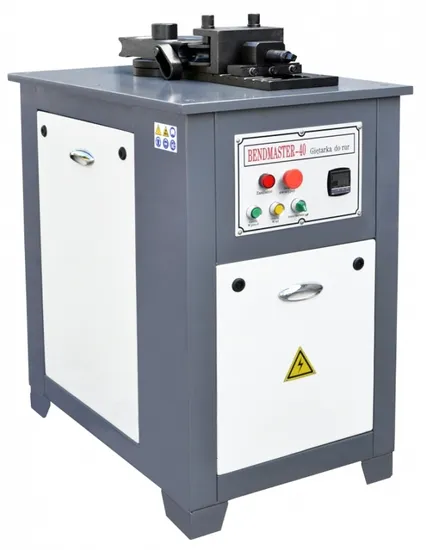

Eletric pipe bending machine (WG-40)
A motor-driven tool set for special purposes. By utilizing the metal materials' adaptable distortion, the tool can bend metal pipes into patterns in the shape of arcs. The machine, a necessity for today's ornamental industry, can be widely used in such fields as architecture, decoration, furnishing and municipal gardening. The tool can be operated by pressing individual components and can simultaneously be operated semi-automatically under control of optical-electric code system, suitable for mass production. Such striking features as simplicity in structure, easy to operate, energy-saving and highly efficient make the tool ideal for pipe bending.

Items	Technical Parameters
Max. Size of Processing Materials	diam40 round 40×40×1 angle30×30
Maximum Bending Angle	180º
Rotating Speed of the Main Shaft	Processing Speed	1.2
(r/min)	Returning Speed	2.4
	Power(KW)	2.4 - 3
	Rotational Speed(r/min)	1400/2800
Functions of the Motor	Voltage(V)	220/380
		(at customer's request)
	Frequency(HZ)	50(at customer's request)
External Sizes(L×W×H)mm	720×450×800
Net Weight	300
Gross Weight	350

Main Features:
1. Motor drive pipe bender.
2. semi--automatically for mass production
3. DRO for bending angle showing.
4. Suitable for hard material using.
5. Hydraulic type is available for model "C"

---
