Energy Saving a+++ Evi -25 Degree Operate CE Bafa Keymark Poland German Air Source Heating Pump Water Heater

Product Description

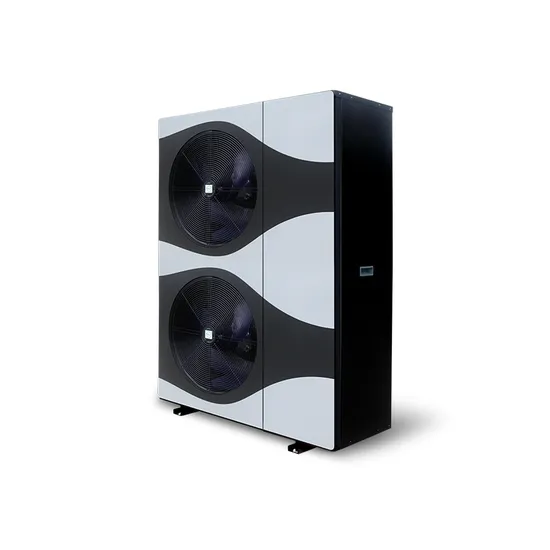

Product DescriptionR32 inverter EVI monoblock A+++ air source heat pump for residential heating ,cooling and sanitary hot water.
Product Features
1). R32 refrigerant,eco-friendly.2). Energy class: A+++.
3). For Heating /Cooling/Hot Water(3 in 1).
3).Inverter EVI compressor stable operation at -25ºC.
4). Power Detection Function.
5). SG-READY Function.
6). 5-Inch TFT True Color Screen.7). 5G/2.4G Compatible WIFI Module.8). Dual Temperature Zone.9). Reserved RS485 Communication Port.10). Linkage Control with PV Function.
11). Outlet water temperature up to 60ºC.
*R32 EVI inverter compressor stable operation at -25ºC,for space central heating and domestic hot water use.
*Installation for business,We also provide technical support.
Based on monoblock air to water heat pump,it catch heat energy from the ambient air and transfers it to warm/cool your home and supply sanitary hot water ,up to 75% energy saving from our heat pump.
*Heating in winter,Cooling in summer &Sanitary hot water whole year ,3 in 1 function satisfy people's Daily needs.
*Environmental Friendly--R32 refrigerant,GWP=675,Only 1/3 of the R410A ;
*High efficiency A+++ level-- Its energy efficiency grade can reach A+++ at 35°C, A++ at 55°C.
*The DC Inverter EVI air to water heatpump operates reliably at extreme temperatures of -25°C
*Smart life:WiFi/APP connect/5-inch TFT true color screen,RS485 smart grid.
Efficient IoT solution:
customer management platform can effectively save labor costs for dealers.It can be connected with WIFI or DUT to realize remote monitoring of data record all the operating parameters of the units and synchronize it to the management background of dealers and manufactures.
*Connect solar panels PV system for more energy efficient, environmental friendly ,save money and time .
*Usage scenarios,meet the needs of daily life.
Product Parameters

Model			BLN-006TB1	BLN-010TB1	BLN-014TB1	BLN-018TB1
Power supply			220-240V~ / 50Hz	220-240V~ / 50Hz	220-240V~ / 50Hz	220-240V~ / 50Hz
Heating¹ (A7/6ºC,W30/35ºC)	Heating Capacity	kW	2.50-8.30	4.20~12.20	5.30~16.50	6.20-20.50
	Power Input	kW	0.57-1.92	0.86~2.88	1.15-4.15	1.36-5.28
	Current Input	A	2.53-8.52	3.82~12.77	5.10~18.41	6.10-23.67
	COP	w/w	4.32~5.86	4.23~5.39	3.97~5.43	3.88~5.21
Heating² (A7/6ºC,W47/55ºC)	Heating Capacity	kW	2.30-7.62	3.85~11.20	4.90~15.10	6.30-19.90
	Power Input	kW	0.75-2.61	1.13~3.75	1.65~5.25	1.65-6.82
	Current Input	A	3.32-11.58	5.01~16.6	7.32~23.30	7.40-30.56
	COP	w/w	2.92~3.33	2.99~3.46	2.87~3.38	2.91~3.34
Cooling (A35/24ºC,W12/7ºC)	Cooling Capacity	kW	1.80-7.10	2.60~10.30	4.50-13.50	5.50-17.50
	Power Input	kW	0.61-2.43	0.91~3.65	1.45-4.85	1.65-6.25
	Current Input	A	2.71~10.78	4.03~16.19	6.43~21.52	7.40-28.02
ERP level(out water temp. at 35ºC)		/	A+++	A+++	A+++	A+++
Max. Input Power		kW	2.71	3.83	6.20	7.5
Max. Input Current		A	12	17	27.50	35.0
Refrigerant Type/Charge/GWP		.../kg	R32/1.25/675	R32/1.8/675	R32/2.8/675	R32/3.5/675
fan quality		/	1	1	1	2
IP Class		/	IPX4	IPX4	IPX4	IPX4
Max. Outlet Water Temp.		ºC	60	60	60	60
Operating Ambient Temp.		ºC	-25~45	-25~45	-25~45	-25~45
Water Piping Connections		/	G1	G1	G1-1/4	G1-1/2
Rated Water Flow		m³/h	1.1	1.75	2.52	3.20
Water Pressure Drop		kPa	25	27	30	32
Noise Level		dB(A)	49	52	53	56
Product Dimensions ( L×W×H )		mm	1100*445*850	1100*445*850	1110*480*850	1110*445*1450
Packed Dimensions()		mm	1160*530*1010	1160*530*1010	1160*565*1010	1170*530*1610
Product Weight		kg	102	107	124	151
Packed Weight		kg	114	119	136	168

Model			BLN-010TB3	BLN-014TB3	BLN-018TB3	BLN-024TB3
Power supply		V/PH/HZ	380~415V /3/ 50Hz	380~415V /3/ 50Hz	380~415V /3/ 50Hz	380~415V /3/ 50Hz
Heating¹ (A7/6ºC,W30/35ºC)	Heating Capacity	kw	4.20~12.20	5.30~16.50	6.20-20.50	6.50~26.10
	Power Input	kW	0.86~2.88	1.15-4.15	1.36-5.28	1.78~6.45
	Current Input	A	1.46~4.89	1.86~6.70	2.31-8.96	2.87~10.35
	COP	w/w	4.23~5.39	3.97~5.43	3.88~5.21	4.04~5.43
Heating² (A7/6ºC,W47/55ºC)	Heating Capacity		3.85~11.20	4.90~15.10	6.30-19.90	6.90~26.10
	Power Input	kW	1.13~3.75	1.65~5.25	1.65-6.82	1.95~8.55
	Current Input	A	1.92~6.37	1.67~8.47	2.80-11.58	3.15~13.80
	COP	w/w	2.99~3.46	2.87~3.38	2.91~3.34	3.05~3.42
Cooling (A35/24ºC,W12/7ºC)	Cooling Capacity		2.60~10.30	4.50-13.50	5.50-17.50	5.20~21.30
	Power Input	kW	0.91~3.65	1.45-4.85	1.65-6.25	1.95~8.20
	Current Input	A	1.55~6.20	2.34~7.82	2.80-10.61	3.15~13.23
ERP level(out water temp. at 35ºC)		/	A+++	A+++	A+++	A+++
Max. Input Power		kW	3.83	6.20	7.50	10.00
Max. Input Current		A	65	10.50	13.00	17.00
Refrigerant Type/Charge/GWP		.../kg	R32/1.8/675	R32/2.8/675	R32/3.5/675	R32/3.5/675
fan quality		/	1	1	2	2
IP Class		/	IPX4	IPX4	IPX4	IPX4
Max. Outlet Water Temp.		ºC	60	60	60	60
Operating Ambient Temp.		ºC	-25~45	-25~45	-25~45	-25~45
Water Piping Connections		/	G1	G1-1/4	G1-1/2	G1-1/2
Rated Water Flow		m³/h	1.75	2.52	3.20	4.12
Water Pressure Drop		kPa	27	30	32	35
Noise Level		dB(A)	52	54	55	58
Product Dimensions ( L×W×H )		mm	1100*445*850	1110*480*850	1110*445*1450	1110*445*1450
Packed Dimensions()		mm	1160*530*1010	1160*565*1010	1170*530*1610	1170*530*1610
Product Weight		kg	107	124	151	160
Packed Weight		kg	119	136	168	177

Company ProfileSacon HVAC,a number of Solareast,which is a prominent player in the energy sector, operates five state-of-the-art production bases across China.Among them, located in Shunde, Guangdong, specializes in the production of air source heat pumps.
Spanning over 100,000 square meters, we have invested USD 2 million in the construction of advanced testing laboratories. These cutting-edge facilities enable us to rigorously test machines up to 300kW, even in the harshest cold climates, with temperatures as low as -30°C.
Moreover, Solareast Heat Pump Ltd. has received prestigious certifications such as ISO9001, ISO14001,ISO18001, and our products have gained approval from BAFA,CE, Rohs, MCS, KEYMARK, CB, SAA, ErP, among others.
With more than a decade of experience in air source heat pump technology, Solareast Heat Pump Ltd. stands at the forefront of providing sustainable and highly efficient thermal energy solutions.
We have five Industrial Parks, Zero-carbon solutions for sustainable living with household solar water heaters, heat pumps, kitchen appliances, and water purifiers.
FAQQ1 Are you a manufacturer?
Answer: Yes, we are a professional heat pump manufacturer with rich experience and complete R&D, production, sales, and service supply.
Q2: What is your main product?
Answer: Our main products include DC inverter heat pump, air source heat pump water heaters, all in one heat pump, swimming pool heat pump, ,EVI heat pump and commercial in low temp. areas.
Q3: How do I place an order?
Answer: Please send us an inquiry or contact us through online services; After receiving your inquiry, we will reply to you Catalogs, quotations, and other information you need. Q4: Do you provide OEM/ODM customized manufacturing services?
Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European/North American/Australian standard heat pump under your brand according to your special needs. Q5: Can I apply to become your heat pump distributor?
Answer: We are currently looking for more heat pump distributors worldwide, who can distribute our heat pump products in local countries/regions. Q6: I need to buy in large quantities. Can you provide a sample service?Answer:Yes, we can provide sample service, and we have engineers to help you solve installation problems .

---
