US$2.00-10.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
200-500AMP Bridge Rectifier
Device Package
T123-200/250/320/500
Product Type
Bridge Rectifiers
Voltage - Peak Reverse (Max)
400-1600V
Subcategory
Diode & Rectifier
Transport Package
Carton Box
Specification
Single Phase
Production Capacity
500000PCS/Years
Product Description
Product Description
| Features | Typical Applications |
| All diffuse techinics | Big power transformer |
| Ceramic disc type seal | AC &DC motor control |
| Middle trigger | AC &DC switch |
| Bifacial cooled | Phase control rectification |
| High current | Inverter Welder |
| | |
| Explanation |
IGT,VGT,IH are all TA=25ºC test data,others are all TA=Tjm test data. I²t=I²TSM×tw/2:tw=Half sine wave current,when at 50Hz, I²t=0.0051²TSM(A²S) |
When at 60Hz,ITSM(8.3ms)=ITSM(10ms)×1.066,Tj=Tjm I²t(8.3ms)=I²t(10ms)×0.943,Tj=Tjm |
Product Parameters
| Russia Type Phase Control Thyristor(Capsule version) |
| Type | VRRM | lRRM | IT(AV) | IT(RSM) | IT(sm) | VTM/lTM | di/dt | dv/dt | VGT | IGT | IH | Tj | Rjc | Tq | M² | Wt | Outline |
| | | Tc55ºC | Tc70ºC | 10ms | 25ºC | 25ºC |
| V | mA | A | A | kA | V/A | A/μS | V/μS | V | mA | mA | ºC | ºC/W | μS | KN | kg |

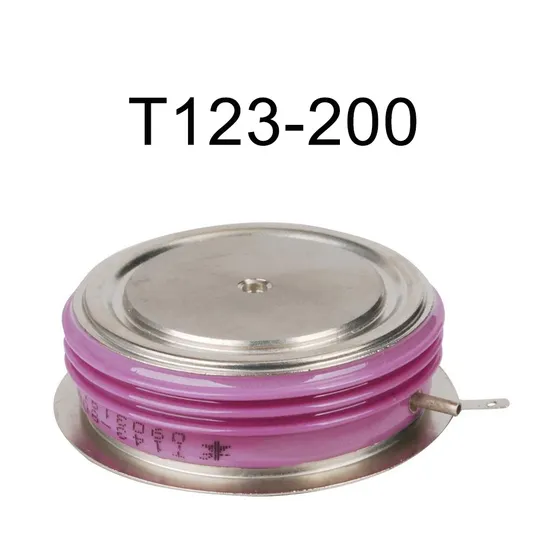

| T123-200 | 400-1600 | 15 | 200 | 265 | 4.0 | 1.90/628 | 200 | 200-1600 | 3.5 | 250 | ≤200 | -40ºC ~ +125ºC | 0.08 | 250 | 6 | 0.07 | RC1 RC2 |
| T123-250 | 400-1600 | 20 | 250 | 750 | 4.5 | 1.75/785 | 200 | 200-1600 | 3.5 | 250 | ≤200 | 0.08 | 250 | 6 | 0.07 |
| T123-320 | 400-1600 | 20 | 330 | 1090 | 5.0 | 1.65/1005 | 200 | 500-1600 | 2.5 | 250 | ≤200 | 0.08 | 100-200 | 6 | 0.07 |
| T123-500 | 400-800 | 30 | 500 | 550 | 6.0 | 1.50/1570 | 200 | 500-1600 | 2.5 | 200 | ≤250 | 0.07 | 63-125 | 6 | 0.07 |
| T133-400 | 400-1600 | 30 | 400 | 935 | 8.0 | 1.75/1258 | 200 | 200-1600 | 2.5 | 200 | ≤250 | 0.045 | 250 | 10 | 0.18 | RC2 RC3 |
| T133-500 | 100-800 | 50 | 500 | 1720 | 10 | 1.50/1570 | 320 | 500-1600 | 2.5 | 150 | ≤250 | 0.035 | 160 | 10 | 0.10 |
| T233-500 | 400-1800 | 30 | 500 | 1160 | 9.0 | 1.80/1570 | 200 | 500-1600 | 2.5 | 250 | ≤250 | 0.04 | 100-200 | 10 | 0.1 |
| T133-600 | 100-800 | 50 | 600 | 2085 | 12 | 1.60/2512 | 200 | 500-1600 | 2.5 | 250 | ≤250 | 0.035 | 63-125 | 10 | 0.18 |
| T133-630 | 100-1200 | 40 | 630 | 1430 | 12 | 1.65/1978 | 200 | 500-1600 | 2.5 | 250 | ≤250 | 0.04 | 80-160 | 10 | 0.10 |
| T143-500 | 400-1600 | 40 | 500 | 1175 | 11 | 1.80/1570 | 200 | 200-1600 | 3.5 | 300 | ≤250 | 0.034 | 250 | 15 | 0.240 | RC4 RC5 |
| T243-500 | 1800-3200 | 40 | 550 | 1110 | 10 | 2.00/1570 | 200 | 500-1600 | 2.5 | 250 | ≤250 | 0.034 | 200-400 | 15 | 0.24 |
| T143-600 | 900-1800 | 70 | 640 | 1250 | 9.0 | 1.95/1978 | 200 | 500-1600 | 2.5 | 250 | ≤300 | 0.032 | 160-320 | 15 | 0.24 |
| T143-1000 | 100-1200 | 50 | 800 | 1585 | 14 | 1.70/2512 | 200 | 500-1600 | 2.5 | 250 | ≤300 | 0.032 | 100-200 | 15 | 0.160 |
| T143-1250 | 100-800 | 30 | 1045 | 1860 | 19 | 1.60/3140 | 200 | 500-1600 | 2.5 | 250 | ≤300 | 0.030 | 80-160 | 15 | 0.160 |
| T153-800 | 100-1000 | 50 | 800 | 1840 | 20 | 1.90/2512 | 200 | 200-1600 | 3.5 | 300 | ≤300 | 0.024 | 100-400 | 24 | 0.500 | RC6 RC7 |
| T153-1250 | 100-800 | 100 | 1250 | 3000 | 18 | 1.50/4000 | 300 | 500-1600 | 3.5 | 300 | ≤300 | 0.016 | 100-400 | 24 | 0.550 |
| T153-1600 | 100-800 | 100 | 1600 | 3500 | 22 | 1.45/5000 | 300 | 500-1600 | 3.5 | 200 | ≤300 | 0.016 | 100-400 | 24 | 0.55 |
| T253-500 | 5200-6000 | 150 | 530 | 1175 | 10 | 2.40/1570 | 100 | 500-1600 | 3.5 | 200 | ≤300 | 0.026 | 100-400 | 24 | 0.55 |
| T253-800 | 2000-2400 | 70 | 800 | 1470 | 17 | 2.10/2500 | 200 | 200-1600 | 3.5 | 350 | ≤300 | 0.020 | 100-400 | 24 | 0.550 |
| T253-1000 | 1000-1800 | 70 | 1000 | 2300 | 22 | 1.80/3140 | 200 | 200-1600 | 3.5 | 300 | ≤300 | 0.020 | 100-400 | 24 | 0.550 |
| T253-1250 | 400-1800 | 70 | 1250 | 1830 | 28 | 1.60/3925 | 200 | 200-1600 | 3.5 | 300 | ≤300 | 0.018 | 100-400 | 24 | 0.550 |
| T173-2000 | 1600-2000 | 200 | 2000 | 4600 | 49 | 1.65/6280 | 320 | 500-1600 | 3.5 | 300 | ≤300 | 0.011 | 100-400 | 24 | 1.200 | RC8 |
| T173-2500 | 200-2400 | 100 | 2700 | 5750 | 52 | 1.70/7850 | 200 | 500-1600 | 3.5 | 350 | ≤300 | 0.010 | 100-400 | 24 | 1.2 |
| T173-3200 | 200-2400 | 200 | 3360 | 7360 | 60 | 1.50/10050 | 320 | 500-1600 | 3.5 | 300 | ≤300 | 0.010 | 100-400 | 24 | 1.200 |
| T173-4000 | 200-2400 | 200 | 4000 | 9200 | 62 | 1.50/12560 | 200 | 500-1600 | 3.5 | 300 | ≤300 | 0.010 | 100-400 | 24 | 1.200 |
Application Detailed Photos
Company Profile
Zhejiang Lingshine Electric Co., Ltd (Aigoodele), is a high-tech enterprise integrating production, sales and service. Our main products are frequency converter (VFD), soft starter (LSRQ), solid state relay (SSR), solid state voltage regulator (LSCR), high power rectifiers and so on (KP, ZP, MTC, MDS, MDQ, MDC, MDK, ETC). These products have been widely used in energy, petroleum, metallurgy, chemical industry, construction, plastics, textile, water supply, paper making, mining, printing and many other industrial fields. In addition, our products not only perform well in the domestic market, but have also been exported to dozens of countries and regions in Asia, Africa, Europe and other continents, winning wide international recognition.
We look forward to cooperating with every customer, welcome your guidance and suggestions, and work together to create a more brilliant future.
FAQ Q1.Can you provide price sheet and catalog to me ?We are pleasure to provide these to you for reference,you can cotact me,give me your emails ID.
Q2.Can I get some samples?
Yes,Sample order is available for quality check and market test .but you need to pay the sample fee and shipping cost
Q3.How long is your lead time?2-3 days for the stocks items, mass production generally needed 1-2 weeks.
Q4.What's your payment terms?
We usually accept all kinds of payment terms.Such as T/T,L/C,Western Union.Cash.
Q5.What's your warranty terms?
We offer 12 months warranty time.
Q6.Do you have the products in stock?
Depends on your request,We have standard models in stock.Some special products and big order will be newly produced according to your order.
Q7 How about your payment and shipment?Payment: We accept T/T, Western Union, Paypal, Cash etc.We usually ship via DHL, UPS, FedEx or TNT, SF for small order and via ocean for bulk order according to your requirement.
Q8.How does your factory do the quality control?
Quality is priority,we always attach the importance to quality control from the beginning to the end of the production.every product will be fully assembled and carefully tested before packing and shipping.
>>
