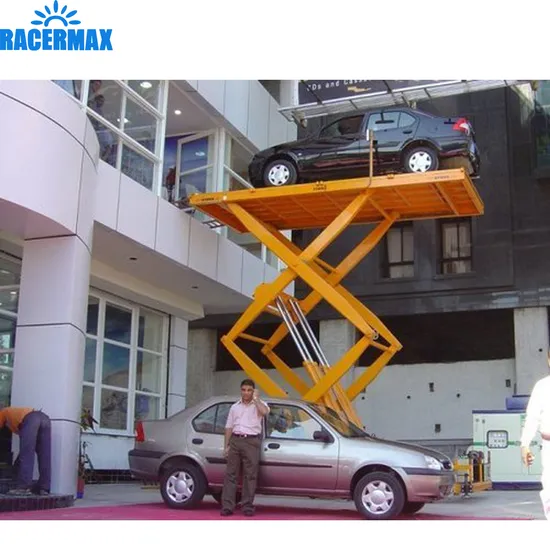

3000kg Hydraulic Scissor Lift Table Scissor Lift Car Lift Garage Lift

Product Description

RACERMAX 3000kg hydraulic scissor lift table scissor lift car lift garage lift1. PRODUCT DESCRIPTION * Lift capacity: customizable
* Programmable microprocessor control system
* Lifting height: 2500~5000mm
* Cab size: Normal 5800*2600 (customizable)
* More safety features in below

Technical Parameters
Lifting capacity	3 - 5tons (can be customized)
Lifting height	2.5 - 5.5m (can be customized)
Platform length	4.5 - 6m (can be customized)
Platform width	2 - 3m (can be customized)
Platform material	Diamond steel plate 4mm standard
Drive mode	Hydraulic
Operation	Button switch (standard) / remote controller (optional)
Power unit	5.5kw hydraulic pump
Lifting speed	4m/min
Finishing	Electrostatic sprayin

2. PRODUCT FEATURES MAIN PARTS

Platform		Checkered Steel Plate reinforced by high strength channel steel.
Scissor structure		Manganese steel rectangular tube, I-iron sealed by steel plate ormanganese steel plate.
Control apparatus		Brand DEXILI, Siemens
Pump station		Brand Italy Hydrappp or Lisheng.
Hydraulic cylinder		Both way high precision wear-resiting hydraulic cylinder with locking device for fall protection. ement system.
Hydraulic pipe		High pressure pipe with double expanded metal protected.
Hydraulic oil		32# antiwear hydraulic oil. (according to the local temperature)

3. Application:
4. PACKAGING & SHIPPING * Wooden case Package or as required

5. ABOUT RACERMAX
Racermax Machinery Co.,Ltd. is mainly manufacturing hydraulic lift, aerial working platform, etc, providing specialized lifting equipment and scheme for both enterprise and privacy .
The main products are : Scissor Lift, Aluminum-alloy mast lift, Four-post Car Lift, Wheelchair Lift, Vertical cargo Lift, Articulated boom lift, Hydraulic dock leveler and other special customized products. Company product design and manufacturing experience in fifteen years, a series of special technology, developing the key technology, through ISO9001 and European quality CE certification

6. RACERMAX Service
OUR SERVICE1. All the machines will b full tested before shipment.
2. The total machine guarantee for 12 months.
3.24 hours technical support-email, telephone or video online.
4. User-friendly English manual for machine using and maintaining. 5. Several sets wearing parts will be free for you.
AFTER SALES 1. User-friendly English manual for machine installation using and maintenance.
2. One year warranty for whole machine without man-made fault;
3. We will send you parts for free if there are any non-human factors problem during warranty time
4.24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and holiday, engineers are available to your country if necessary.

---
