China ISO2531 Ductile Cast Iron Pipe Fitting Dismantling Joint Pn25 DN700

US$600.00 1 Ton (MOQ)

Basic Info.

Model NO.
Dismantling Joint
Connection
Flange
Surface Treatment
Epoxy Coated,Paint Coated,etc
Head Type
Round
Transport Package
Wooden Cases, Protection Layer or as Per Customer
Specification
DN80-DN2000mm
Trademark
MDS
Origin
Shanxi, China
Production Capacity
5000ton/Month

Product Description

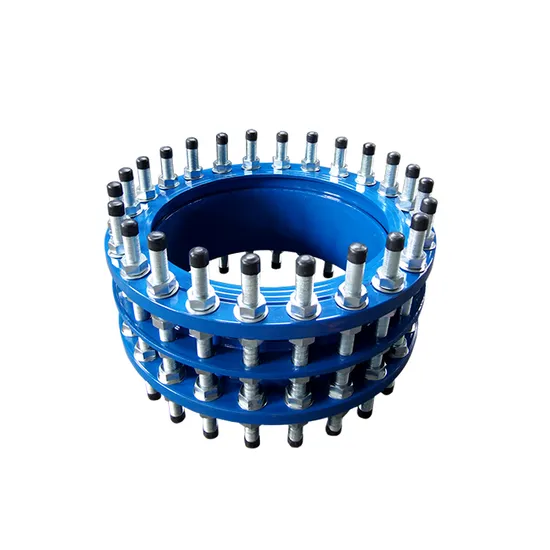

China Ductile Cast Iron Pipe Fitting Dismantling Joint PN25 DN700
Product Description Dismantling Joints are designed to provide a simple method of installation and removal of flanged pipeline components such as valves, pumps and strainers from a pipeline. Dismantling Joints allow a variable setting distance of 50mm on site and are supplied complete, ready to be installed. Dismantling Joints are restrained products that prevent axial pipe movement, they are most suited to valve and pump chambers, and complex steel fitting installations.
Size: DN80-DN2000mm
Material: ductile iron GGG50
Standard: ISO2531,EN545, EN14525
Pressure: PN10/PN16/PN25/PN40
Connection: Flange
Body material: Ductile iron with FBE ( fusion bonded epoxy) coating or Epoxy painting
Gaskets: NBR or EPDM
Bolts and Nuts: Carbon steel with galvanized zinc plated G4.8/G8.8, or SS304/SS316
Surface treatment: Epoxy Coated,Paint Coated,etc
Application: Gas, oil, etc
Brand name: MDS
