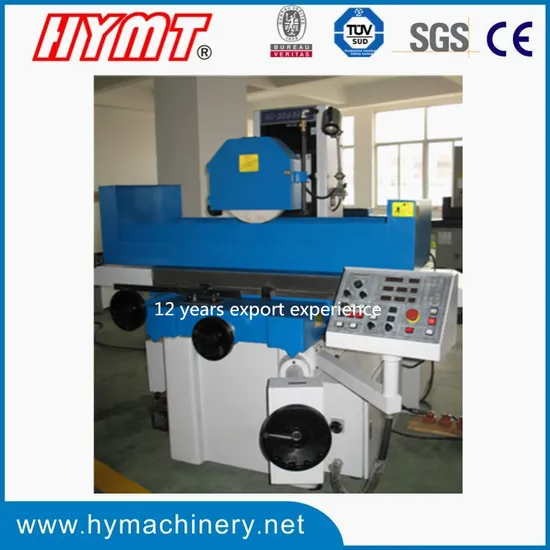

SGA2050AHD full auto Saddle Moving Surface Grinding machine

Product Description

Main features:
1) Auto feed & manual on transverse, auto hydraulic transmission & manual feed on longitudinal, rapid feed, step-feed and auto down feed control on vertical. Vertical movement adopts PLC to realise the auto grinding.
2) saddle is adopted in the design, all these three guide way is lined with TF wearable material and lubricated by intermittent forced oil pump, the column have double walls, the table right and left moving is driven by variable displacement vane pump and adopted closed type hydraulic system. All above make the machine with high rigidity and precision, small thermal distortion, moving smoothly, low nose and temperture increase, is easy to maintain. The table is driven by manual or by hydraulic in right or left direction, the speed is variable changed by adjusting lever located on the saddle, driven by manual or by motor through driven the ball leading screw. The grinding head could be driven by servo motor, also it be driven by manual.
Main functions:
The machine is used for MID-type & mini type material processing workshop and the other maintain & tools workshop in.
The machine is mainly used to grinding the surface with the wheel circle face, the surface been ground have high precision and low roughness. Also it can grind the vertical surface with the end face of the wheel, the workpieces can be placed on the magnetic chuck or fixed directly on the table or with other fixtures suit to various work pieces.
The machine can be used for grinding steel, cast iron and non ferrous metals.
Standard accessories:
(1) Electro magnetic chuck, (2) coolant tank, (3)demagnetic eqipment, (4)wheel cover guard, (5)leveling wedge and foundation bolt (6) balance arbor (7)wheel dresser base (8) wheel flange and wheel (9) tool box and tools (10)PLC auto grinding controller
Optional accessories:
(1) blance stand (2)coolant tank with magnetic separator (3)coolant tank with dust collector (4)coolant tank with dust collector and magnetic separator (5)coolant tank with paper filter
(6) coolant tank with paper filter and magnetic seprator (7) manual parallel wheel dresser
Main specifications:

Item/model		unit	SG2050AHD	SGA2550AHD	SGA3063AHD	SGA30100AHD	SGA4080AHD		SGA40100AHD
Table size(w*l)		mm	200*460	250*500	305*635	305*1020	406*813		406*1020
Max. longitudinal & cross travel		mm	510*238	560*275	765*340	1130*340	910*450		1130*450
Max. distance from spindle center to table		mm	450	450	580	580	580		580
Electro magnetic chuck size		mm	200*460	250*500	300*600	300*1000	400*800		400*1000
Speed of table longitudinal movement		m/min	7-25
Table transverse movement	Auto feed	mm/min	0.1-8
	Rapid speed	m/min	990
	Feed of handwheel	mm/div	0.02
Wheelhead vertical movement	Auto feed	mm/min	0.005/0.01/0.02/0.03/0.04/0.05
	Rapid speed	m/min	240
	Feed of handwheel	mm/div	0.005
Grinding wheel	speed	rpm	2850(50HZ), 3450 (60HZ)		1450(50HZ), 1750(60HZ)
	Size ( OD*W*ID)	mm	200*20*31.75		350*40*127
Spindle motor		kw	1.5	2.2	5.5
Hydraulic motor		kw	0.75		2.2
Colling pump motor		kw	0.04		0.125
Elevating motor		kw	0.5
Cross feed motor		kw	0.04
Max. loading capacity(include chuck)		kg	120	180	270	400	500	600
Total rated power		kw	3	3.7	9
Height of machine		mm	1675		1890
Floor space(L*W)		mm	2050*1400	2300*1600	2800*2200	4400*2200	3600*2400	4400*2400
Gross weight		kg	1600	1800	2800	3500	3800	4300
Package dimensions(L*W*H)		mm	1906*1716*2195	2316*2016*2208	2350*2220*2150	2950*2220*2210	2850*2270*2180	2950*2270*2210

KINDLY NOTE:
H means: Cross and vertical moving by manual, hydraulic transmission on longitudinal movement AH means: Auto intermittent feed on transverse, hydraulic transmission on longitudinal, manual on vertical. AHR means: Auto intermittent feed on transverse, hydraulic transmission on longitudinal, rapid movement on vertical. AHD means: Auto intermittent feed on transverse, hydraulic transmission on longitudinal, PLC auto grinding controller and servo motor is equipped and with wheel head auto down feed
