Automatic 5 gallon bottle water filling line / 80-120BPH PC pet barrel filling machine
Product Description
Brief introduction :
QGF-150 5 gallon drinking water filling machine is mainframe for produce 5 gallon barreled water. It consists of frame, water tank, pipeline, water pump, air tank, transmission machine, electric machine, can finish empty barrel washing , filling , capping through several washing , fit quantify filling and auto capping. The whole working process was control by PLC, realize stability washing effect, accurate filling capacity and perfect capping effect.

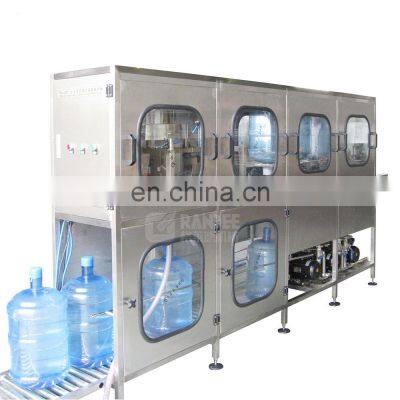

Main 5 gallon washing filling capping machine
QGF-300 5 Gallon / 20liter water filling line with washing system
|
No.
| Machine name
| Model
| Size(mm)
|
1
| Automatic decapper
| BG-1
| 850x650x1800
|
2
| Interior and exterior brushing machine
| STNW-2
| 2210*1340*2140
|
3
| QGF-300 main washing filling capping machine
| QGF-300
| 5000×1580×2000
|
4
| Light checker
| DJ-1
| 300×700×1000
|
5
| Shrinking machine
|
| 900x700x1200
|
6
| Feeding conveyor belt
| Plastic chain
|
|
7
| Products outlet conveyor
| SUS304
|
|
8
| Roller conveyor
| SUS304
|
|
9
| Laser / ink jet printer
| 20W
| 340*220*100
|
Electrical component information
|
No
| Name
| Brand
|
1
| Touch screen / HTM
| Siemens / Mitsubishi
|
2
| PLC
| Siemens / Mitsubishi
|
3
| Switch, Button
| Schneider
|
4
| Air cylinder
| AIRTAC
|
5
| Water pump
| CNP
|
6
| Sensor / Approaching switch
| AUTONICS
|
Details
| Semi automatic 5 gallon decapper and washing machine (associated equipment for this filling line)
1.The empty barrel inverted and insertion pulling out cap stations, foot air valve plate, pulling cap head will pull off the lid into the pipeline.
2.Open the brush barrel cover, insert empty barrel pulled out cap into washing barrel station, close machine cover and automatically open water pumps and hair brush.
|
Washing Process
1.In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly.
2.There are five or seven flushing process: First, second steps are disinfectant, the third step: drip dry, four step: recycling water inside and outside rinsing, five step: pure water and drip dry.
| |
| Filling and capping machine
This filling machine working with automatic cap holding and cap hopper, use gravity filling type. full bottle filling process.
One head capping machine
|
Automatic barrel loader:
The empty barrel cleaned by inside and outside brushing machine sending through automatic loading system by transmission chain, loading barrel counter counting 1pcs barrel, blocking barrel cylinder action to stop feeding barrel, loading and pushing barrel action, and pushing barrel to barrel inverting frame reset.
| |
| Light checker and steam heating shrink machine:
Inspection light is used for lighting when inspect whether exist sundries in barrel.
Heat shrinking machine is consist of water vessel and electric heat up, electric heat up to produce steam.
|
Bottle conveyor system
Including: Automatic empty bottle feeding in system, plastic chain material with driven motor.
Full barrel conveyor system with SUS34 material chain
| |
| Roller conveyor system
Material: SUS304
Length:1.5m
|
Company information
Workshop detail
Our team
Our exhibition
Project cases
FAQ
Q1: How to find suitable 5 gallon water filling machine or complete 5 gallon water production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
Q2: How to start a water factory business ? What's my budget?
A2: First confirm the source water, send the water samples to your local department and get the water analysis report, then tell us how many tons or liters per your you want to make, like 2000liters/hr, 4000liters/hr, 6000liters/hr, etc, then we can know to choose which model for you, like QGF-80, QGF-120, QGF-150, QGF-300, QGF450, QGF-600,etc.
Q3: How to confirm the bottle shapes that is very attractive for your customer ?
A3: Our engineer can design 5 gallon bottle shapes with your company Logo for you.
Q4: Which kinds of machines included in one complete 5 gallon water production line?
A4: Semi auto or Automatic Decapping machine, internal and external brush washing machine, main 5 gallon washing filling capping machine, automatic labeling machine (optional) light checker, shrink tunnel, feeding bottle conveyors, bottle out conveyors.
Q5: Are you a trading company or a manufactory?
A5: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q6: Do you have technical support after we purchased your machines?
A6: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q7: If you buy our machines, can you offer us wear-out spare pats?
A7: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
>>
