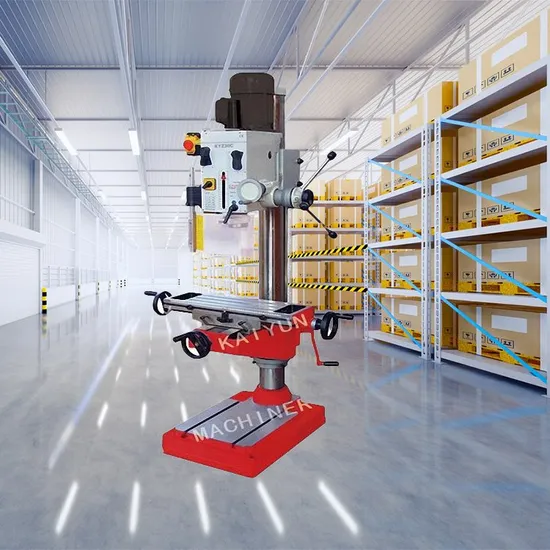

High Precision Universal Household Drilling Milling Machine (KYZ30/KYZ30C)

Product Description

Specification
Model No.	KYZ30	KYZ30C
Max. drilling capacity	32mm(MT3)	32mm(MT3)
	40mm(MT4)	40mm(MT4)
Max. end milling capacity	32mm	32mm
Taper of spindle bore	MT3 or MT4	MT3 or MT4
Spindle stroke	120mm	120mm
Headstock swivel left & right	±90°	±90°
Step of spindle speeds	12	12
Range of spindle speeds	75-3200mm	75-3200mm
Table size	540X470mm	600X190mm
Table travel	X-360mm	Y-190mm
T-slot width	14mm	14mm
Table stroke up & dowm	620mm	520mm
Diameter of column	115mm	115mm
Max distance spindle to table	715mm	610mm
Distance between spindle to column	272mm	272mm
Max distance spindle to base	1180mm	1180mm
Motor	1.1KW	1.1KW
Packing size	740X720X1830mm	820X720X1830mm
Net weight	320kg	340kg
Optional Accessories
Power feed	1 pc
Cooling system	1 set
58pcs clamp kits	1 set
Milling vise	1 pc
Drilling vise	1 pc
Keyless drill chuck	1 pc

Features
1.Milling, drilling, tapping boring and reaming;
2.head swivels 360 degree. Table swivelled 180 degree and tilted 45 degree;
3.Super high colum;
4.Equipped with cross table or Big&wide table; Cross table may be elevated up and down by geared crank handle;
5.Micro feed precision;
6.Heavy-duty tapered roller bearing spindle;
7.High precision ground spindle and larger quill etc.

---
