| Basic parameters | Suitable material | PE.PP,PVC,PS,PETG,so on |

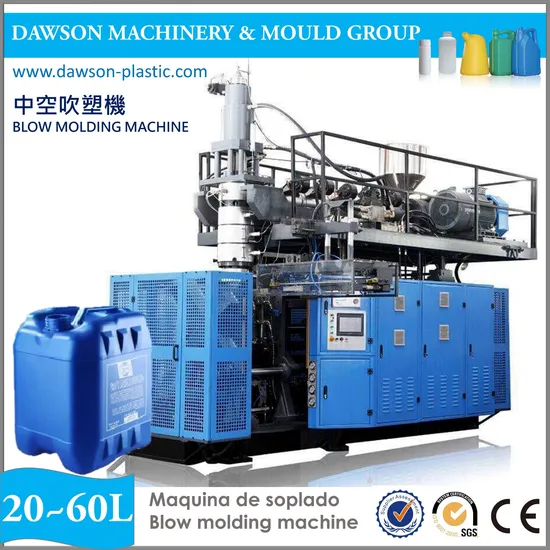

| Max volume | ABLD90 max: 60L |
| Output capacity | 40~50pcs/h |
| Size | 4.6×2.4×3.8(M) |
| Weight | 12T |
| system | Specification | Parameters | Note |
| Plasticizion system | Summarize | High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature | |
| Reducer | Hard finishing,High intension,Low noise reducer | |
| Screw | ∮90mm,L/D ratio 25, 38CrMoALA | Cooling system available |
| Plasticization | 100 ~ 130Kg/H | HDPE |
| Heating Zone | 4 Aluminum Heater | Automatic heating |
| Heating power | 15~18KW/H | |
| Extrusion Motor | Three phase asynchronous motor (380V,50HZ) | |
| Cooling Fan | 4zone | Automatic cooling |
| Extrusion system | Summarize | High-grade alloy steel, center feeding | |
| Die head number | 1 | |
| Center distance of die heads | / | |
| Max die mouth | ∮280~340mm | |
| Heating zone | 4 Stainless steel heating cycle | |
| Heating power | 5~7KW | |
| Clamping system | Summarize | High intension, rigidity, center mold locking, stable mould opening and clamping system | |
| Clamping force | 210~260KN | |
| Template distance | 450~1000mm | |
| Max mould size | 700X950mm | |
| Mould material | High grade 50# steel | |
| Electric system | Summarize | PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) | Japanese Mitsubishi PLC system |
| Operate interface | Touch screen, automatic self-diagnose alarm system | |
| Temperature control | Automatic temperature control module | |
| Movement control | Japanese Mitsubishi, Chinese/English Version | |
| Electric protection | Ampere overload, electric short circuit self-protection function | |
| Hydraulic system | Summarize | Multiple function hydraulic integrated block Proportional control, high efficient | |
| Oil pump motor | Three phase asynchronous motor (380V/220V,50/60HZ) | |
| Oil pump | Imported double pump | |
| Valves | Imported oil pump valves and connections | |
| Oil pipes | Double layer overpressure resistant | |
| System pressure | 60Kg/cm² | |
| Cooling system | Separate water cooling cycle, oil cooler cooling system | |
| Pneumatic system | Summarize | Taiwan AIRTAC pneumatic system | |
| Air pressure | 0.6Mpa | |
| Air displacement | 0.8M3/min | |
| Electromagnetic valve | Taiwan AIRTAC | |
| Cooling system | Summarize | Separate cooling system of mould, barrel and oil system | |
| Cooling medium | Water | |
| Water flow | 90L/min | |
| Water pressure | 0.3-0.6MPa | |
