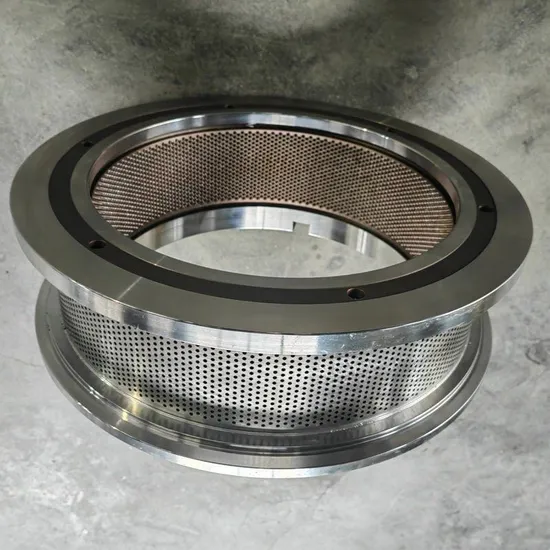

6mm Aperture Stainless Steel Ring Die Granulator for Ruminant Feed

US$400.00-4,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CPM3016-4
Processing Technics
Crushing-before-Mixing
Screen Mesh
Without Screen Mesh
Pellet Mill Type
Ring Die Pelleter
Condition
New
Applicable Materials Shape
Granular
Warranty
One Year
Material
X46cr13
Hole Diameter
3.5mm-8.0mm
Compression Ratio
1:6-1:12
Outer Diameter of Workpiece
300mm-1200mm
Inner Diameter of Workpiece
200mm-900mm
Surface Hardness
HRC52-56
Ring Die Wall Thickness
15mm-100mm
Transport Package
Wooden Case
Specification
According to different type
Trademark
HanPai
Origin
China
HS Code
8436990000
Production Capacity
3000 Pieces/Year

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 50.00cm
Package Gross Weight
150.000kg

Product Description


Specification parameters of feed mills ring die:
•Material:Quality chromium Steel
•Machining aperture:0.8mm up to 18mm
•Outer diameter of workpiece:300mm up to 1200mm
•Inner diameter of workpiece:200mm up to 900mm
•Surface hardness:HRC 52-56
•Ring die wall thickness:15mm up to 100mm
•Compression ratio:according to user demand
Specification Type Hole Diameter Working Width Designed Output
IDAH 530F 0.8 193 1.0t-1.5t/h
FAMSUN 600 170 0.8-1.2t/h
ANDRITZ 520 178 0.8-1.2t/h
IDAH 530F 1.0 193 2.5t--3.9t/h
FAMSUN 600 170 2.2t-3.5t/h
ANDRITZ 520 178 2.2t-3.5t/h
IDAH 530F 1.2 193 2.8t-4.6t/h
FAMSUN 600 170 2.5t-4.0t/h
ANDRITZ 520 178 2.5t-4.0t/h

Feed Varieties Hole Diameter Compression Ratio
Poultry&livestock feed Φ2.0-Φ4.5 1:9-1:20
Shrimp Feed Φ0.8-Φ2.0 1:20-1:35
Fish feed Φ1.5-Φ5.0 1:10-1:25
Crab feed Φ1.5-Φ5.0 1:15-1:26
Biomass and Fertilizer Φ5.0-Φ18.0 1:4-1:10
Cattle and sheep feed Φ4.5-Φ10.0 1:6-1.12
Feline feed Φ1.6-Φ3.5 --
