PU Electric Drive Polyurethane Polyurea Spray Machine

Product Description

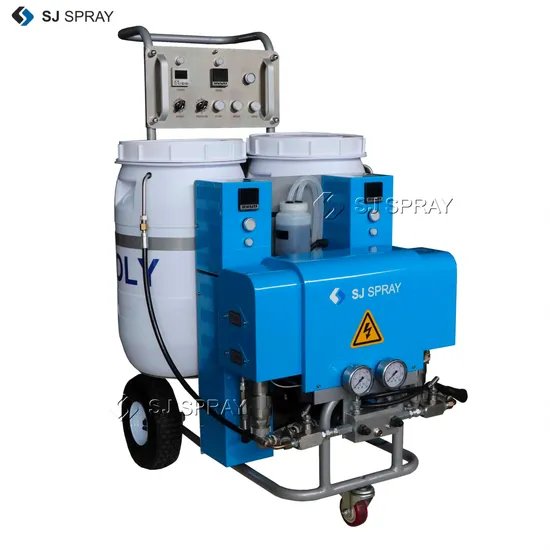

Electric plyurea/polyurethane spray machine FD-E10HP

Product Description
1.The FD-E10hp provides the high pressure power and performance needed to spray polyurea coatings. It's lightweight and portable - runs on residential power, so you don't need to invest in a generator.
2.The machine has a self-circulating system and the material heats up quickly so you can get up and running faster.
3.Entry-level system for pure and hybrid polyurea coatings.Ideal for small to medium projects such as patios, swimming pools, balconies, water tanks, truck bed liners, secondary protection and waterproofing.
4.The machine only needs to be matched with an air compressor with a displacement of 0.1m³/min.
5.Spray gun, heated hose can be used with G/R/A/C/O.

6.Digital heating control
allows you to enter the exact temperature you need
7.Portable
Its through standard doorways
Plugs into a standard 120V or 230V outlet
Sturdy wheels for extreme worksites.
No generator, motor required
8.Motor
Provides 50% more power than FD-E10
Provides improved spray performance and reduced pressure drop,increase heat.
9.Heating system
Directs unused power from the motor circuit to the attached heater rods.
Additional heater power allows material to reach desired temperature faster in recirculation mode.

Product Parameters

Project	FD-E10HP
Material application	Polyurethane/polyurea
Maximun working pressure	21Mpa
Data ratio of raw materials	1: 1 (fixed)
Raw material viscosity range	200-1000CPS (at working temperature)
Working pressure	17MPa (170 bar)
Maximum Fluid Temperature	88 ° C (190 ° F)
0utput	2-12kg/min
Gun Type	Spray/Injecting
Total power	10000W
Voltage	110V/230V 1-ph / 3-phs 380V/400V 3-ph
Max heating hose length	98.4 feet (30m) 45 meters to be customized
Barrel cubage	40L (each one)
Packing size	705*879*1126mm
Gross weight	220KGS
Net weight	180KGS

Standard configurations
1.Slef-cleaning spray gun 1 unit 2.transfer pump 2 unit 3.Heated hoses 15 meters
Packaging & Shipping
Export fumigation-free wooden box packaging, sea and air transport more robust and reliable.


Exhibition
For more than ten years since its establishment, it has participated in dozens of foreign exhibitions and has very stable partners all over the world.
Certifications
CE certification, rich export experience

---
