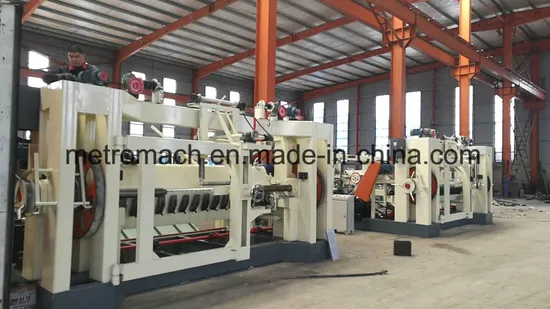

Automatic 8FT Face Veneer Peeling Machine for Plywood

Product Description

Automatic 8FT Face Veneer Peeling for Plywood
Wood peeling machine is a main equipment in plywood production,It is used for a certain length and the diameter of the logs into continuous veneer tape,After shear become certain specifications of the veneer.The veneer peeling machine has very close relationship with plywood production and quality.
1, A variety of sizes are 2ft, 4ft, 8ft,etc.
2, Besides, we can produce plywood machines according to your requirements.
This is one type of our machines, also we can design and manufacture machines according to your requirements
Technial Parameters:

Length for rotary Peeling	2000-2600mm
Diameter of log rotary Peeling	1500mm
Veneer thickness	0.2-2.6mm
Left diameter	200mm
Main motor power	30kw
Screw clamp motor	4kwx2
Fast forward and backward motor	1.5kw
Adjust knife motor	1.1kw
Hydraulic station motor	0.75kw
Total power	41.75kw
Inverter	90kw
Net weight	8000kgs
Size(L× W×H)	6000x2300x2600mm

About Us: We have been manufacturing and exporting complete sets of veneer and plywood machines since the year 1998 , with 20 years experience .Our products covering log cutting saw , log debarking machine,veneer peeling machine, veneer clipper ,veneer dryer machine roller type and hot press type, glue spreader,cold press,hot press,plywood trimming saw etc. Our machines are widely used in India,IndonesiaThailand,Malaysia,Cambodia,Burma,Laos,Russia,Ameria,Mexico,
Brazil,Paraguay,Colombia,Tanzania,Morocco etc,
We not only offer you plywood machines, we also teach you how to make glue and how to make plywood.We can send our engineers to your place to install machines for you and teach your workers how to make plywood from wood logs .

---
