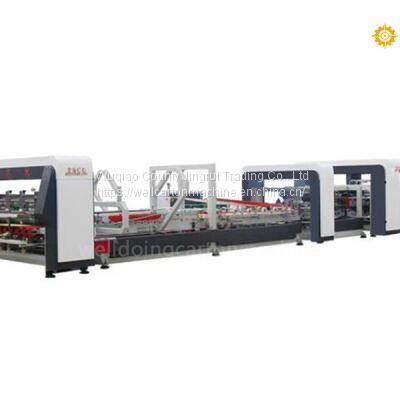

The automatic folder gluer stitcher machine for box is composed of six parts: paper feeding part, line touching part, folding part, nailing box part, counting output part and electrical control part. PLC control touch screen input data, nail box part action servo motor control, simple and reliable operation. Automatic feeding, automatic line, automatic folding, automatic correction, automatic nailing, automatic counting, automatic stacking output, before and after the whole machine, synchronous adjustment, order storage, difference between sticky box machine and nail box insufficiency work units installed, host nail stick up and down automatically, a key transformation, transverse, nail stick work independently, when the adjustment more convenient, fast and efficient. Advanced technology, reliable quality.
A. Paper feeding department:
Adopt SiGreen high wear-resistant suction belt, each can control the size of the air volume separately. To ensure the stability of adsorption, the machine adopts pneumatic buffer plastic shaft feeding method to effectively solve the problem of low compression resistance of cardboard with line, the paper feeding part adopts double drive servo separation before and after the paper feeding, while the preloading synchronous automatic adjustment, each cardboard before and after individual precise transmission, more accurate positioning.The front baffle of the feeding part can be adjusted by electric power, and the front feeding part can be adjusted by electric power. It is convenient and fast to meet the demand of paper supply of various specifications.
B. Wire touching part:
The paperboard is sent from the paper feeding department to the line touching department.It is a feature of our company's full automatic folder gluer stitching machine. The original paperboard is often not ideal after the previous process, which affects the quality of products. The line touching part is to deal with the original rolling part by the method of line touching again, so as to achieve a better folding effect, and can well control the size of the carton after sticking nails. The key data is obtained from countless tests and tests. The pressure of the line touching can be adjusted according to the thickness and material of the paperboard. Therefore, the line touching part has the advantages of reasonable structure, novel design, practical convenience and obvious effect.
C. Folding part:
Linkage with the paper feeding part, frequency conversion speed regulation, folding and paper feeding part press line synchronous adjustment. Imported porous belt conveyor cardboard, automatic folding, the whole process of adsorption, effectively avoid weight box, film box, glazing box and other cardboard in the work of the phenomenon of skew skid pile of paper, make the machine more stable and efficient.
D.Calibration Department
1. The machine has a shaping device before the nailing box at the back of the folding part. Before the nailing box, the folded cartons will be adjusted and patted again to ensure that the nailed cartons have no scissors.
2. The calibration part is driven by servo motor.
E. department:
1.Interconnect with the line touching part, frequency conversion speed regulation, add each molding wheel. roll the original line acain
2.The corrugated box folder gluer stitching machine is characterized by direct drive of servo motor with stable and accurate speed.
3. The stitching line adopts 2 plates of 2kg flat wire automatic wire feeding device to reduce the number of wire changing and improve production efficiency.
4 This machine can be used for single nail, double nail, strengthen the multi-function operation of the carton.
5 nail speed per minute up to 700 nails/minute.
Model
| QDJ-2600H+(No beat)
| QDJ-2600H+(beat)
|
MAX (A+B) *2(mm)
| 2400(stick)2600(nail)
| 2600
|
MIN (A+B) *2(mm)
| 780
| 1060
|
MAX (C+D+C) (mm)
| 1200
| 1200
|
MIN (C+D+C) (mm)
| 340
| 530
|
MIN rock cover C (mm)
| 25
| 25
|
MAX rock cover C (mm)
| 320
| 320
|
MAX width B (mm)
| 500
| 500
|
MIN width B (mm)
| 165(nail)140(stick)
| 250
|
MAX length A (mm)
| 800
| 800
|
MIN length A (mm)
| 260
| 280
|
MAX height D (mm)
| 650
| 650
|
MIN height D (mm)
| 200
| 200
|
width of the tongue E (mm)
| 30-35
| 30-35
|
length (mm)
| 15000
| 1500
|
width (mm)
| 3700
| 3700
|
power (kw)
| 22
| 22
|
Weight(T)
| 11
| 11
|
Stitching Speed(Nail/min)
| 1000
| 1000
|
Number of Nails
| 1-99
| 1-99
|
Nailing From(mm)
| 30-80
| 30-80
|
Nailing speed (Tablets/min)
| 100-110
| 80-100
|
Sticky box speed(M/min)
| 110
| 110
|
F. Counting and stacking output
Complete the carton, clap, count, stack and send out the whole dozen automatically.
We also have many other packaging machines: automatic hard paper board equipment 、 automatic nail box machine 、 Kraft paper slitting and rewinding machine 、 automatic partition assembler 、 paper edge protector machine 、 air bubble film machine 、 ink wastewater treatment clear machine 、 flexo printer die cutting slotting machine 、 folder gluer machine and so on.
Our Services
1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.
3. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.
