China Bright Bars Automatic Production Line Machines

Product Description

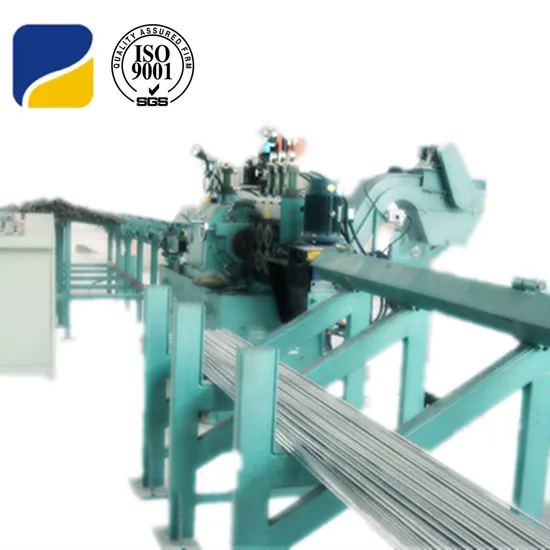

Automatic lathe peeling machine
Series WXC Centerless Lathe includes Semi-automatic hydraulic and CNC type.
The machine's features are as follows:
When processing over-length bar,centerless lathe has incomparable advantages.
Centerless Lathe is not only processing Bar,also Wire Rod.
Processing speed 1~12m/min,the working efficiency of centerless lathe is dozens of times of the ordinary lathe.
High Precision,after peeling,diameter tolerance can reach ≤h9,surface roughness(Ra)≤6.3μm.
Our product is suitable for processing all kinds of metal materials, such as steel tubecore bar, titanium alloy, stainless steel, bearing steel, spring steel, alloy tool steel, carbon tool steel, high-speed tool steel, quality carbon steel, alloy structural steel, nonhardening and tempering steel, free-cutting steel, valve steel, gear steel, mold steel and all kinds of nonferrous metal, pipe etc.

Technical Parameters

Specification
Workpiece Required	Diameter Range (mm)	7<dia<40
	Length (mm)	≥1400
	Yield Strength σb (Mpa)	≤1100
	Surface Hardness	≤HB320
	Straightness (mm/m)	≤1.5
	Diameter Tolerance	according to GB 702-2004 second group
	Roundness(mm)	≤50% of diameter tolerance
	Surface Roughness (Ra)	≤25~50mm
After Peeled	Diameter Range (mm)	6≤dia≤38.5
	Diameter Cutting Depth (mm)	0.5~1.5
	Diameter Tolerance	≤h11~h9
	Surface Roughness (Ra)	6.3~3.2μm
	After Straightened (Ra)	≤1μm
	Roundness(mm)	≤0.03
Feeding Speed (m/min)		1.0~12.0
Cutter Head Rotational Speed(rpm)		450~1250
Main Motor Power (kw)		45
Main Machine Outline Dimensions(m)		2.5 X2.2 X1.5
Main Machine Weight (t)		3.5
Total Capacity(kw)		56

Company introduction Yantai Haige International Trading Co.,Ltd., is a joint-stock enterprise engaged in exporting niche mechanical equipments produced in China to the markets abroad, which is located in Laishan district, Yantai City, Shandong Province, China.
The company is based on the manufacturing plant---Yantai Haige machine tools Co.,Ltd whose area is more than 2000m².There are one hundred and forty staffs working in the factory.The factory is mainly engaged in producing and selling peeling machines(centerless lathes), straightening machines, polishing machines(abrasive belt machines), auxiliary machines and other processing and finishing equipment for steel(bright steel) for more than ten years.
Certification
Packaging & Shipping
FAQ 1.Are you manufacturer or trading company?
We are professional manufacturer and we have more than 10 years experience in this field.We have our own factory.
Besides,at the end of 2014,we was just estabilished a trading company.
2.How many employees are there in your factory?
Approximately 150 persons.
3.Do you have your own R&D team?How many design engineers do you have?
Yes,we have our own R&D team.More than 10 persons.
4.Which countries have your machines been exported to now?
Russia,South Korea,North Korea,Pakistan,India,Vietnam,Taiwan,etc.
We regard our customer's satisfaction as our unremitting pursuit.
