Construction Machine Mini Cement Concrete Mixing/Mixer/Batching Plant

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
CBP90M
Structure
Cylinder Type
Productivity
90m²/h
Feeding Height
1380mm
Vibrating Amplitude
2.0mm
Certification
ISO9001: 2000
Condition
New
Color
Gray
Transport Package
Export Standard
Specification
Shipping: 3*40 HQ in total, silo excluded(CBP60M)
Trademark
TRUEMAX
Origin
Hangzhou, China
HS Code
8474310000
Production Capacity
10 Units/Month

Product Description

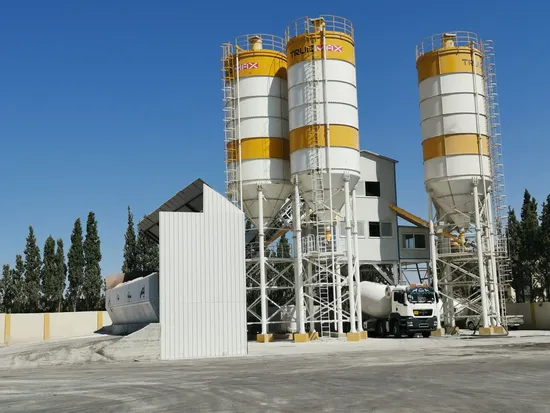

Efficient CBPS Series Concrete Mixing Plant are widely used to produce plastic concrete and dry concrete for large and medium road&bridge construction projects. The whole plant is consist of batching station, belt conveyor, silo, screw conveyor, concrete mixer, measuring system, water and air supply system, control system, etc.
Excellent mixing performance.
Our SICOMA twin-shaft concrete mixer have air purged multi seals to enhance bearing life and effectively avoid slurry leakage. Unique monitoring system to monitor the running conditions of gear box, dumping hopper and lubrication
pump.Equipped with special motor of lubricating oil pump, the exclusive use of four separate pump core respectively oil to four axial heads directly without diverter valve .

Model CBP 90M
Theoretical Productivity(m³/h) 90
Mixing Power(KW) 30x2
Main Mixer MAO3000/2000
Discharging Volume(m³) 1.5
Diameter of The Aggregates(mm) <=60
Volume of The Aggregate Bin (m³) 4 x 16
Weighing Precision of Aggregate 5000±2%
Weighing Precision of Cement 1200±1%
Weighing Precision of Water 600±1%
Weighing Precision of Additive ±1%
Discharging Height(mm) 3800
Power(KW) 145

The main electronic components are fromWorld famous brand ( Schneider /Siemens).

Excellent Mixing Performance
Advanced mixing mechanism, unique mixing angle, quick mixing and discharging together make superior mixing performance.
Accurate Batching
Excellent weighing sensor guarantees the precision and stability of weighing. Inching and drop height control are available under different situations.
Humanized Control System
Industrial computer with friendly user interface, centralized monitoring and VGA high-definition display
Real-time monitoring mixer, ensure the normal operation and concrete quality.
Data protection in case the system is out of power
Auto calibration of drop height and zero point
Perfect functions of data finding and printing
Company Information
Hangzhou Truemax Machinery & Equipment Co., Ltd, established in 2003, is an integrated supplier of machinery engineering, manufacturing, trading, parts and after-sales services for international projects.
Over a decade of active efforts and innovations, the company has provided stable and high-quality construction equipments and Provide one stop solution for many well-known projects such as Houseing, high-rise buildings,road construction, bridges, tunnels, airports and Sea Port in more than 100 countries around the world.
Our Factory:
Certificate

FAQ:
Q : Are you a factory or trading company?
A: We are the company which is the joint of trade and industry. We have our own factory which has been manufacturing concrete machineries along with spare parts for 14 years offline.

Q: How about the quality control of your productions?
A: All our productions are matured with technology, and have passed CE, CCC, ISO9001, ISO14001, OHSAS18001, 1and ect.
And we have strict inspection before the goods shipped.

Q: What do you think is the most competitive advantages when comparing with other suppliers?
A: We are TUREMAX, and we always present true info to our client. And most of our clients are reglar customers, and also new buyers would like to repeat orders from us since we are not only sell goods but also servies. And the most important is that we take all customers as our friends.

Q: Can we go to your factory have a look?
A: Of cause yes! You are welcome, and it is our honors.
