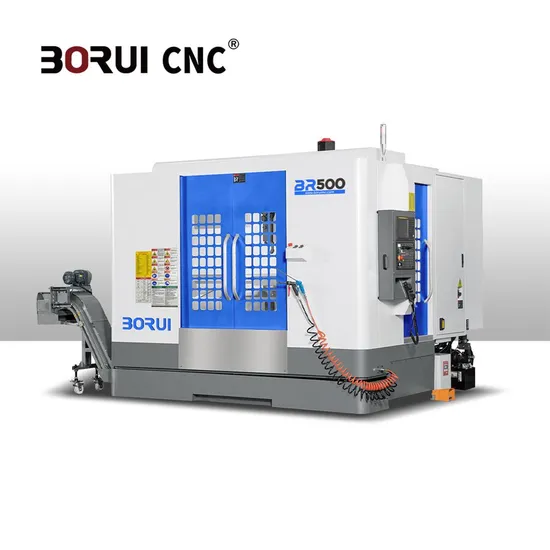

Br500 Horizontal Machining Center 4 Axis CNC Horizontal Milling Machine Center

Product Description

BR500 Horizontal Machining Center 4 Axis Cnc Horizontal Milling Machine Center Product Description
Horizontal machining center spindle speed is high, the rigidity is strong, the torque is big. The main shaft is equipped with cooling system, the automatic rotation of the double working table, reducing the auxiliary time, improve efficiency. This series of machine tool performance is perfect, the precision is stable, it is suitable for processing various types of box parts and two dimensional, three-dimensional surface, it is mechanical, automobile, communication, textile machinery, printing machinery, agricultural machinery and other industries processing box type parts of key equipment.processing equipment.
Product Parameters

Description	Unit	BR500
Table size	mm	500*600
Table loading	kg	800
maximum dimensions of workpiece	mm	800×650
Distance from countertop to bottom	mm	1000
X-axis travel	mm	800
Y-axis travel	mm	650
Z-axis travel	mm	750
Worktable center to spindle end face	mm	120~905
Table surface to spindle center	mm	50~650
Spindle speed	rpm	50~5000(Belt 1:1.5 deceleration)
spindle motor	kw	11/15KW
Spindle speed change		stepless speed
taper hole of spindle		BT50 (optional BT40)
Fast feed speed	m/min	X,Z:24,Y:18
Feed cutting speed	m/min	10
positional accuracy	mm	0.012
repeated positioning accuracy	mm	0.006
B axis positioning accuracy		±6
B axis repeated positioning accuracy		±2
lead screw		X/Y/Z:φ4012
guide rail		X/Y/Z:45 rollers
Machine size	mm	2880×3200×2940
weight	t	6

Optional Accessories:
·SIEMENS 808D BASIC/828D CNC Controller
·16T DISC type tool magazine
·WITHOUT tool magazine(CNC Milling)
·BOX guideway or LINEAR guideway
·4th axes(NC Dividing Head)
·CE protection
CNC milling machine features:
1.HMC Series cnc horizontal machining center is the ideal machining center for producing box-type and irregular work pieces for automobile, shipbuilding, engine and general manufacturing industries.
2. The machine is a high-performance, high-reliability and high-precision product characterized by compact configuration and rapid response rates.
3. The spindle design makes it particularly suitable for heavy power cutting while the excellent ball screw and spindle cooling system provide superb capability for flexible manufacturing.
4. High-speed High-power Spindle;
5. Compact Configuration and Unrivaled rigidity;
6. High-speed ATC;
7. CE Standard and CE Certificate;
Details Display

Packaging & Shipping
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on ******, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: How can I make the payment?
A: We can make the deal on ****** online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.

---
