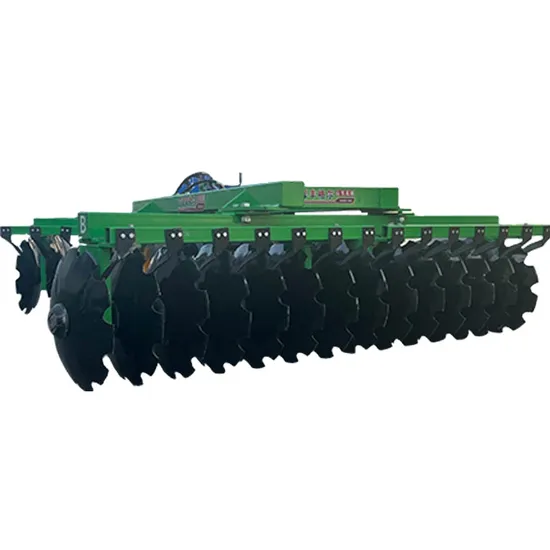

| 1BZT- Extra heavy disc plough | |||||||
| Model | 1BZT-3.0 | 1BZT-4.0 | 1BZT-5.0 | ||||
| Frame | 180 X 180 X 10 cm | ||||||
| Diameter of disc | 910 X 10 mm | ||||||
| Weight | 4500 | 5000 | 5500 | ||||
| Working width (m) | 3.0 | 4.0 | 5.0 | ||||
| Working depth (cm) | 300 | 300 | 300 | ||||
| Nos of disc blade | 12 | 16 | 20 | ||||
| Matched power (KW) | 135-195 | 165-210 | 210-260 | ||||
| Linkage | Trailed | ||||||
| FEATURES OF ZEYI 1BZT HEAVY DISC HARROW | |||||||
| Feature 1:Reinforced Heavy Harrow.3-3.5times heavier than 1BZ series heavy harrow,with compact structure, 180×180mm rectangle square tube steel,connection part of harrow frame is stranthened.Most powerful ability of breaking up soil. | |||||||
| Feature 2:Sealed Bearing Combination.8 sealed bearing combinations,effectively prevent soil and dirty damage to the bearing. | |||||||
| Feature 3:More big hydraulic pressure transport rubber tire and rim,type:900-16. | |||||||
| Feature 4:Surface treatment-Baking finish or power coating,well resist ability in collision of coating surface. | |||||||
