Factory Hot Sale Orchard Air Blast Sprayer Mist Blower for Agriculture

Product Description

Products Description

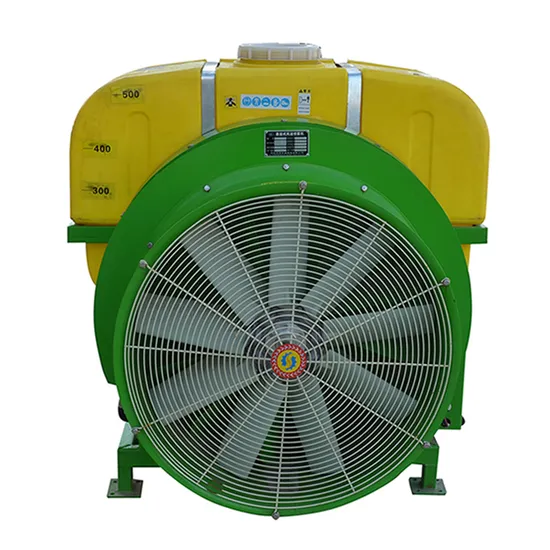

Air Blast Sprayers
will help you cover both sides of the leaf by providing complete coverage with our adjustable air-assisted design. Our Shuoxin Air Blast Sprayer's compact frame can be pulled by a small tractor and is ideal for vineyard and young orchard spraying. The 300L -2000L Mega Squirt can tackle orchard spraying jobs.
Make the most of your air blast sprayer, your most valuable orchard asset.
Details Images
PTO Shaft
PTO Shaft with plastic cover
Iron Frame
Iron Spray-painted compact designed frame
Huge Fan
Huge Fan with diameter of 790-800mm, which can give longer Horizontal Range
12 Nozzles
12 Nozzles in two side of the parayer part, Angle and velocity can be adjusted, Plastic and brass available.
3 point suspension type
Strong Three-point suspension system, use best steel part to hold the compact designed frame.
Water manifold
Water Three valve manifold plastic and alloy material available, Internal jet agitator covered.
PTO Transmission Pump
Plunger pump and Diaphragm pump with 3/4/6 cylinders are available.
Iron Fan Cover
Steel Wire made fan cover can protect the fan and i mprove air flow
Product Paramenters

Model	3WFX-300	3WFX-400	3WFX-500	SX-500
Tank capacity(L)	300	400	500	500
Dimension(mm)	1100*1150*1350	1100*1200*1450	1350*1270*1350	1190*1150*1420
Horizontal range(M)	12	14	14	14
Working pressure	0.4-0.8mpa	0.4-0.8mpa	0.4-0.8mpa	0.4-0.8mpa
Pump	Plunger pump or diaphragm pump	diaphragm pump	diaphragm pump	Plunger pump
Matched Power(HP)	40	40	40	40
Rated Flow(L/min)	32-48/80-100	80-100	80-100	32-48

Our Advantages
Self-cleaning pressure line strainers
Brass or Plastic flipover nozzle bodies
Frame, blower and other Iron components are Spray-painted

Polyethylene tank with hydraulic jet agitation

Clean water hand wash safety tank

External tank level sight gauge

Hinged tank lids with strainer baskets

In tank chemical mixer

Branded diaphragm pump

Large, easy-to-access suction strainer

Stainless steel boom pipes

Nozzles: one set for dilute spraying, the other for concentrate spraying

Standard PTO shaft with cover

Company Profile






Shuoxin, Sure thing.
Hebei Shuoxin Machinery Manufacturing Co., Ltd has been in the agricultural machinery industry for more than 30 years, the product range covering spraying machines, fertilizer spreaders, manure spreaders, mowers, rakes, land levellers and so on. In the 30 years' service for agriculture field, Shuoxin has grown into an enterprise that integrates multiple business modules such as Design, Manufacture, Service and Information Survey. Shuoxin agricultural machinery have done a important work to nutrition supply and plant diseases & insect pests control for crops such as wheat, cotton, corn, rice, orchards and vegetables. With the ISO System certificates and CE production certificates, Cooperating with Shuixin can guarantee the partners with advanced machine products, reduced labor cost, improved work efficiency and promoted product revenue.
Certifications
Product packaging
Iron Farme Packing
All the machines are fixed in the Iron Frame by steel wire, the Frame use the steel which is thicker than 3mm. Strong enough to carry and protect the machine.
Black plastic film will also protect the machine from rain and sun shine.

All the frames is welded according to the machine size, to make sure the minimum size and weight.

---
