Product Description
Product Description

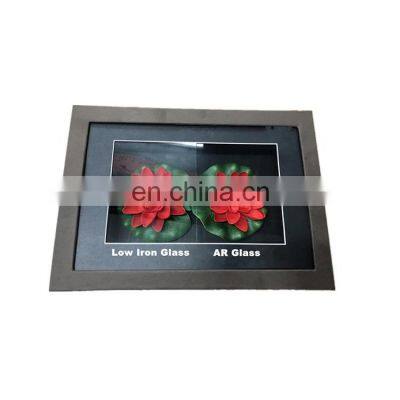

Diminish Reflections Optically Coated Clear Tempered Anti reflective Glass
Product Name
| 2mm 3mm Anti Reflective Glass AR Glass Single Side Coated Anti Reflection Glass
|
Raw Material
| Low Iron Glass
|
Thickness
| 1.1 ~ 6.0mm
|
Thickness tolerance
| ±0.2mm
|
Max dimension
| 1,600 * 2,800mm
|
Min dimension
| 200 * 200mm
|
Light Transmittance
| >=94% or even >=98%,
Reflectivity <=4%, or even <=1%.
|
Application
| Electronic Display, Museum Showcase, Picture Frame, Lighting, Cold Storage.
|
Features of anti-reflective glass:
· High transmission & low reflectance;
· Contrast enhancement for sharp, clear graphics and text;
· Standard broadband AR reduces surface reflection from 4% to less than 1%;
· Can be used in conjunction with conductive ITO coatings, bus bars, UV rejection coatings and surface enhancement coatings (index matching available);
· Can be custom designed to meet your wavelength requirements;
· Anti-Smudge coating can be applied over AR to reduce “fingerprinting”;
· Hydrophobic topcoat can be applied to eliminate moisture buildup;
Structure of Non-reflective (or anti-reflective) glass:
1 Two layers on one side only -- Glass/TiO2/Si02, light transmittance >=94%;
2 Four layers on one side only -- Glass/Ti02/SiO2/TiO2/SiO2, light transmittance >=96%,
3 Two layers on both sides -- SiO2/Ti02/Glass/TiO2/SiO2, light transmittance >=98%
Applications:
· Electronic Displays
· Optics for LED lighting
· LCD Displays
· Front Panel Displays
· Thin-Film LCD Heater Panels
· Instrumentation Windows
· Lighting
· Telecommunications
· Architectural Windows
· Display Cases
· Storefronts
· Projection Port Windows
· Sight Glass
Package:
FAQ
1. About Sample: How could I get a sample?
Small sample is free of charge, partners pay the courier fees.
2. About Price: Could I get your price list?
Of course, please tell us the model number or the pictures, quantity you are interested in, and then we will send our price list to your mailbox as fast as we can.
3. About Lead Time: How soon we can get the shipment?
Our delivery time is within 15 working days after order and payment confirm.
4. About MOQ: what is the minimum order quantity?
One 20ft container
5. About payment term: What is your payment term?
Our payment term is T/T 50% in advance,50% before glass shipped.
6. About Sole-Distributor: What about the terms to become your sole distributor in our city, area or state, country?
Our company look forward the Exclusive Agent all around the world. Please feel free to contact us immediately.
7. About Visit: Could I visit your factory?
It is our honor if you could come to our factory.
>>
