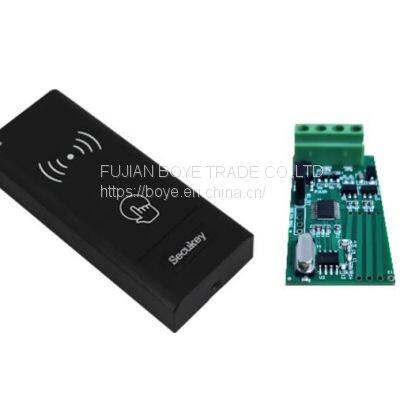

| ireless Reader | Card Type | 13.56MHz MF/IC card |
| Operating Voltage | 3 units of AAA batteries | |
| Idle Current Working Current | ≤5uA ≤35mA | |
| Reading Distance | ≤3cm | |
| Communication Frequency | 433MHz | |
| Communication Distance | 30m Maximum | |
| Operating Temperature | -20°C~+60°C (-4°F~+140°F) | |
| Operating Humidity | 0%~86% | |
| Index of Protection | IP65 | |
| Color | Black, White optional | |
| Dimensions | L120 * W50 * H20 (mm) | |
| Net Weight | 88g | |
| Receiver | Operating Voltage | 12V DC |
| Working Current | ≤15mA | |
| Communication Frequency | 433MHz | |
| Wiegand Output Format | 26 bits Or 34 bits (Default is 26 bits) | |
| Operating Temperature | -20°C~+60°C (-4°F~+140°F) | |
| Operating Humidity | 0%~86% | |
| Dimensions | L25 * W50 (mm) | |
| Net Weight | 10g |
