Textile Machinery Honeycomb Dedust Filtering System

US$18,800.00-24,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

JYFO

Spinning Method

Auxiliary Machinery

Processing Material

Cotton

Producing Process

Spinning Equipment

Certification

ISO9001: 2000

Warranty

12 Months

Customized

Non-Customized

Condition

New

After-sales Service

Guide User Personnel to Learn Installation

Max. Capacity

50000m3/H

Rotary Pre-Filter Dia

2000mm

Main Centrifugal Fan

Sff232-11.2e 45kw

Transport Package

Crates

Specification

JYFO

Origin

China

Production Capacity

200 Pieces/Year

Product Description

24h Online Customer Service
Product Description

Input data

series	Name	Model	Qty.	Air volume	Notes
1	B/R		1	16800 m3/h
2	Carding	JWF1213	6	4800*6=28,800 m3/h
3	Total			45600m3/h

HONEYCPMBE Dust filter JYFL for One B/R line and 6 sets cardings

Item	Description	Specification	Qty.	Notes
	Honeycombe Dust filter Including following	JYFO-III-8	One lot	Max. capacity 50000M3/h, Max. resistance < 220Pa
	Rotary Pre-Filter	JYFO-I-5	2	Φ2000mm, 0.37kw
	Fiber Compactor	JYLC-03	2	Capacity<100KG/h 0.55kw
	HoneyCombe filter	JYFO-II-8	1	0.37kw
	Main Centrifugal Fan	SFF232-11.2E 45Kw	1	When Air volume is 48440M3/h, the pressure is1982Pa
	Dust Collector	JYQY	1	0.75kw
	Centrifugal Fan for Fibers Transport	FC-6-48	2	2.2kw
	Centrifugal Fan for Dust Transport	SFF233	1	4kw
	Electrical Switchboard		1	Total installed power 45kw+11.36kw
	Operation box		1

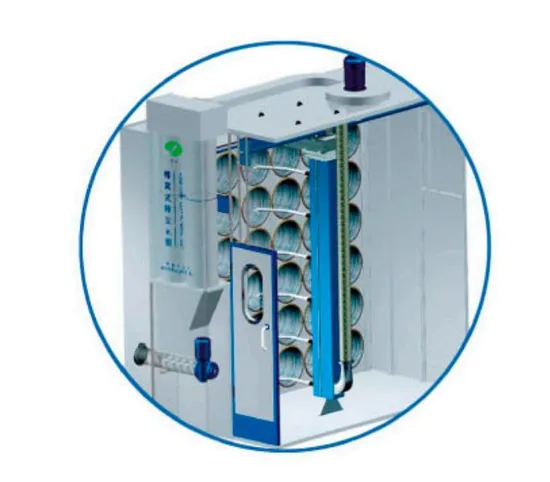

JYFO series honeycomb dust filter unit is a novel development in the dust filteringfield. It can be widely used in such textile and light industries as cotton,wool,ramie or flax,chemical fiber and tobacco etc,for collecting waste and filtering the dust air.
