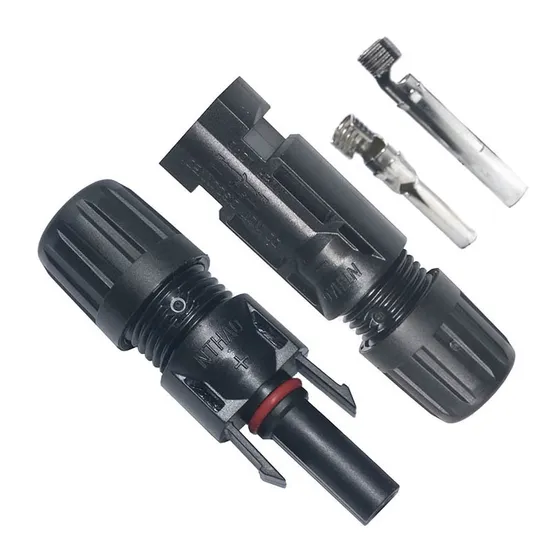

Mc4 Solar Panel Male and Female Plug Solar Cable IP68 PV Connector

Product Description

Specification

Connector system	MC4 CONNECTING
Rated current	Certitied by 30A
Rated voltage	1500V DC (IEC) 600V DC (UL)
Ambient temperature range	-40°C...+90°C (IEC) -40°C...+40°C (UL)
Degree of protection, mated unmated	IP65/IP67 IP2X
Contact resistance of plug connectors	0,5mΩ
Contact material	Copper, tin plated
Insertion Force /With Draw Force	<50N/>50N

Insulation material	PPO
Locking system plug connectors	Snap-in (nur/only MC4)
Flame class	UL94-HB / UL94-V0
Safety class	II
Contact system	MC Multilam
Type of termination Crimpen	Crimping
Cable Size	2.5mm2, 4mm2, 6mm2
Warranty	25 years

Product drawing
Relate Products
Detailed Photos
Company Profile
Our Advantages GRADE A SOLAR CELLS: to ensure all are high efficient grade A solar cells.
HIGH QUALITY: fully automated production processes, each solar panel is tested strictly.
PRICE ADVANTAGES: good price, low cost as industry chain integration with scale effect.
AFTER-SALES ADVANTAGES: 24 hours service on line, timely and fastly solve porblems.
FACTORY ADVANTAGES: more than 10 years experience in PV industry, with 25,000 square meters production base.
FAQ Q : How can we guarantee quality? A : Always a pre-production sample before mass production;
Always final Inspection before shipment. Q : Why should you buy from us not from other suppliers? A : Intenergy is a global Solar energy provider with a presence in more than130 countries around the world.More than 1.5GW of Intenergy modules have been used in residential,commercial and off-grid systems around the world.
Q : what services can we provide?
A : Accepted Delivery Terms : FOB ,CFR ,CIF ,EXW.
Accepted Payment Currency : USD ,EUR ,CNY.
Accepted Payment Type : T/T ,L/C ,Credit Card.

---
