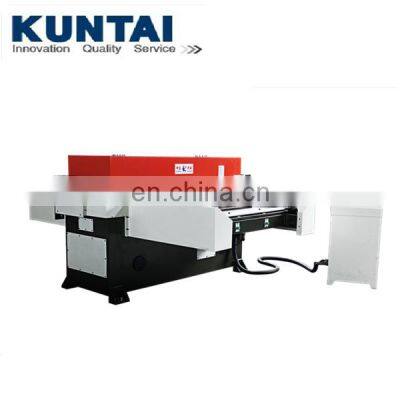

Automatic Die Cutting Machine for PP Blister Packaging

Product Description

Product Description
Automatic Die Cutting Machine for PP Blister Packaging
Hydraulic Automatic Cutting Machine
Blister Cutting Machine
Product Description
Usage and Characteristics
1. Automatic Die Cutting Machine for PP Blister Packaging is mainly used for the cutting of blister, artificial leather, plastics, rubbers, nylon, paperboard, laminated materials, foam and various synthetic materials.
2. PLC control system guarantees easy operation and mass production.
3. Labor saving: Automatic Die Cutting Machine for PP Blister Packaging only needs two workers to operate it.
4. Small motor,small oil pump, electric and oil saving.The machine is equipped with lubricating system to lessen wear and prolong service life.
5. 24V low power special control system.
6. Lower limit of stroke is controlled by a time-lapse circuit with high precision, so it can make high-quality products.
7. Products with different heights can be manufactured at same time.
8. Products of special specifications are available on request.
Main Technical Data(Customizable)
Automatic Die Cutting Machine for PP Blister Packaging
ModelXCLP3-400XCLP3-500XCLP3-600XCLP3-800XCLP3-1000
Cutting Force40T50T60T80T100T
Tension Distance(mm)50-20050-20050-20050-20050-200
Cutting Area(mm)1400*6101400*8001400*9001400*9001400*900
Main Motor Power(kw)345.57.57.5
G.W(kg)25004000600073009000

Machine Advantages:
Automatic Die Cutting Machine for PP Blister Packaging
Double connecting rod balance and hydraulic drive. All moving parts have auto lubricating system, prolonging the machine service life and enhancing cutting precision.The upper pressing board comes down quickly and when it is near the cutting mould, it will slow down automatically. Thus, the upper side and the lower side of the materials will hardly have any size difference.The specially designed machine structure avoids oil leakage.Flywheel energy storage tech helps realize high pressure cutting, saving power. The oil temp will not rise.Stroke setting mechanism can easily and precisely set the cutting height according to different cutting moulds. Main sealing elements are made in Germany. Key hydraulic parts and electrical appliances are imported and have long service life.After high frequency quenching, the excircle surface of cylinder rod will be hard chrome plated, prolonging the service life of the machine.The hydraulic system adopts auto oil adding speed enhancing cylinder. When working, it lowers rapidly and the hydraulic pump is in the state of unloading. It produces less heat and can work continuously for a long time.Machine Pictures
Automatic Die Cutting Machine for PP Blister Packaging
Application For Cutting Machine:
Automatic Die Cutting Machine for PP Blister Packaging
Customer Visit & Exhibition
Packaging & Shipping
Automatic Die Cutting Machine for PP Blister Packaging
Inner Package: Protective Film, etc
Outside Package: Plywood Case
Machines well packed with protective film and loaded in plywood case or export container;English version operation manual and technical data;One-Year-Period wear parts;Tool kit
Our Services
Automatic Die Cutting Machine for PP Blister Packaging
Company Information
CE & ISO Certificates:
Automatic Die Cutting Machine for PP Blister Packaging
1. Are you a trading company or a manufacturer?
We are a manufacturer with strong export capability.
2. Where is your factory?
We are in Yancheng city, three and a half hours' drive away from Shanghai, China.
3. Do you have individual research and development department?
Yes, we have. We believes in technology and market oriented research. Every year, we will work out a number of solutions to actual onsite application problems and develop brand new machines for our customers.
Shoud you have any new ideas about our machines, pls feel free to contact us! We are sure to make your ideas into designs. Our goal is to work together with our customers to solve every onsite problems, to realize better material finishing/processing effect and to be our customers' think tank.
4. How can I trust your quality?
We have CE and ISO certificates. They enhance quality control throughout the manufacturing of our machines.We have professional QCs. For each step of our machine production, there will be a team of QCs responsible for the inspection. Until the item passes all the inspections can it go to the following step.At the end of the machine assembling, a series of testings will be conducted. Unless the machine passes all the testings, we will not make delivery.We guarantee our machines with one-year warranty. Usually, our customers use our machines for 5 years, 8 years and even 10 years.Throughout the lifespan of our machines, the spare parts replacement will be at cost price.5. How to operate the machine? We have not used such a machine before. We just want to expand our business and start a new line.
Pls do not worry! Almost 50% of our overseas customers were in the same situation when buying first of our machines. We have skillful and experienced follow up service staff who have worked out a whole package of solutions catering to the need of our customers like you. Besides, we have a team of technicians available for overseas machine installing, testing and operation instruction.
