Automatic Production Line of Gypsum Board Machine /Plaster Board Making Machine

Product Description

Product Description
Automatic Production Line of Gypsum Board Machine /Plaster Board Making Machine
Gypsum board is Light Quality, High Strength, simple in construction, good process ability, processing performance and can be Dry construction of new building materials operations. It is widely used in building walls, ceiling and various composite sheets.
Have good heat insulation, insulation, earthquake, flood and other energy-saving features, in particular the application of the high-rise building fire on the material requirements. Is the world's fastest growing new type of building materials, product sales of the largest, uses one of the most widely sheet.

Paper supply system
It has the unique way of splicing and high density correction institutions, what's more, the scoring machine play a very helpful role for the further plastic and trimming. Quality of the product can be greatly improved, and the reduce a lot of unnecessary waste, thus educing costs.

Powder supply system
The system with a unique quantitative feeder as the core, so that the supply of gypsum powder is quite accurate, for a short time to provide a great convenience for the operation of slurry adjustment, coupled with the pneumatic discharging device, so that the supply of powder has a reliable guarantee.
Forming conveying systme
Except the the conveyor, additional waste board cleaning machine, not only reduces the labor intensity, but also make the workshop clean.
Drying system
The drying system is the core set of production line,it directly affects the capacity and energy consumption of the production line.This system adopt the unique radiater structure, can control the temperature in each layer and each section, and also have new style air system, so that the temperature and humidity can adjust, which played a role in reducing energy consumption and easy to operate, it is the key to reducing the cost of production.
Heat supply systme
This system used organic carrier furnace(conduction oil furnace),it is a low-pressure high-temperature heating device, it is coal, natural gas or diesel as fuel. It is the preferred heating equipment of the gypsum board production line. In addition, the use of flue gas heat exchanger to reduce energy consumption and reduce costs.
Fixed sizing system
The system with a unique overturn machine and stacker ,thus ending the history of manul work to cut-off the boards, reduce the costs of labors.

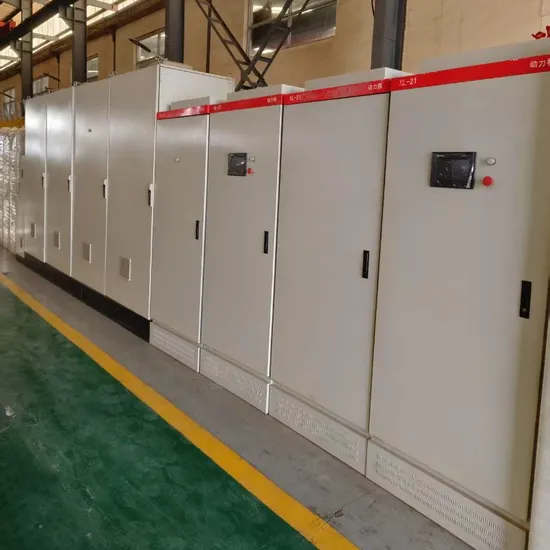

Control system
It has six parts, using computer programs control and use the converter solid-state relays, photoelecric sensors, non-contact devices,ensure the reliable operation of the machine.

Product Parameters
Automatic Production Line of Gypsum Board Machine /Plaster Board Making Machine

Raw materials consumption (1200 x 2400 x 9.5mm)

	item	consumption per sq.m. (kg/m2)
1	gypsum powder	5.6
2	paper	0.4
3	modified starch	0.04
4	foaming agent	0.03
5	fiber glass	0.083
6	glue	0.006
7	water	4.50
8	electricity	0.32kWh/ m2
9	gas	~4200Kcal/ m2

Packaging & Shipping
1. Suitable for long distance transportation 2. Small or key parts loaded in iron boxes 3. Iron boxes with welding 4. Naked 5. Please mark it in the sales contract for special package

Process flow chart

Detailed Photos
Company Profile

* The predecessor is stated-owned enterprice,was built in the 1970s.* A large manufacturer of integrated supply dedicated in researching,manufacturing, trading of building material machinery and construction materials .* CE approved by the EU * ISO 9001 certificate *We have professional team and rich experience.* We provide perfect after-sales service to solve customers' worries.

Company cases

FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional gypsum board producing line manufacturer for more than 12 years.
Q: How long is your delivery time?
A: Normally for 2 months to 3 months .
Q: How many containers will be needed?
A: According to the capacity.
Q: What is your terms of payment ?
A: We can accept L/C or T/T.
Q:What is your advantage and service ?
A:Firstly , we own up-to-date technology and experienced research and develop team , provide you with strong technical support .
Secondly , we provide free design, including plant layout, equipment diagram according to your demand .
Thirdly , we supply all support for raw material supplier information .
Fourthly, arrange skilled technicians installing and training oversea as soon as you receive the machines .
All in all , our resource is your resource .

If you have any doubt, pls contact me. Lucy Dong

---
