Basic Info.
Computerized
Computerized
Certification
ISO9001:2008, CE
Motor Brand
Siemens, Weg, Sew
Inverter
ABB/Schneider/Siemens
Output Capacity
1000-2000kg/H
Suitable Material
Post Consumer Film, Agricultural Film, Woven Bag
Transport Package
Wooden Pallets
Production Capacity
10-30 Sets/ Year
Product Description

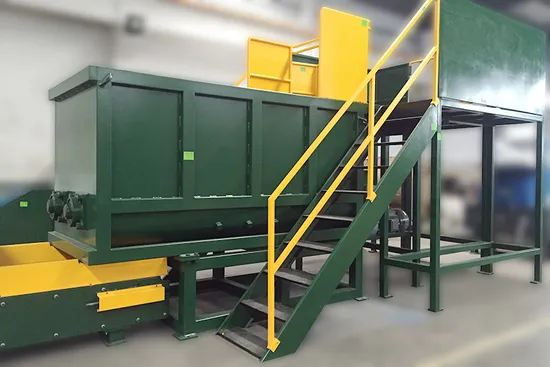

Professional PET washing plastic recycling machines manufacturer
Recycling material of PET bottles recycling and washing line:
Basic data of PET bottles recycling and washing line:
| Capacity | Power Installed | Required Area | Manpower |
| 1000kg/h | 500kw | 750m² | 5 |
| 2000kg/h | 700kw | 900 m² | 6 |
| 3000kg/h | 900kw | 1000 m² | 7 |
Specification of PET bottles recycling and washing line:
| • Horizontal and Vertical type.It is used for open PET Bottle Cube,Which can improve working efficiency and reduce cost of labor.Advantage:high efficiency and less labor cost. |
• Removing labels of bottles with hign efficiency,which largely reduces percentage of non-pet material
|
| • Pre-washing:removing most contaminants on the bottle surface.Which reduce washing pressure on downstream sorting and washing machines.. |
| • It is special designed for PET bottles with low powder produced rate.Blades are made from import matetial of hing quality,which has longer use life.Balde changing is convenient. |
• By high pressure and high temperature steam and adding chemical such as NaOH,cleaning agent etc.,glue and grease on flakes can be removed efficently. • Horizontal type,high speed:2300rpm,higher efficient than the traditional vertical type. • Removing bottle caps,bottle rings,lables and other impurities. •Special designed for removing label scraps and dust in PET flakes. |
Why PET bottles recycling and washing line?
Ability
PET waste bottles recyling and washing system is a complete solution designed for bottles,such as water bottles,cola bottles,etc.label-removing,crushing,washing,drying and packing;it isthe perfect system to process the waste bottles into PET flakes,which can present high quality performance of recycled PET flakes..
Stability
PET bottles recycling and washing line is available for 24 hours working non-stop operation. Optimized design and top brand components to each module. Which could minimize the downtime ratio and save the maintenance time. This ensures the maximum availability and highest productivity for user.
Modularity
PET bottles recycling and washing line is a flexible modular system. All elements required by any customer for different application could be combined freely. This design reduces planning, construction and assembly time effectively. And it's possible to adjust the system with regard to technological modification and market changing. This makes the investment future-proofing!
Efficiency
PET bottles recycling and washing line is designed in all details for efficiency improving. The modular design could simplifies the planning and accelerates the implementation. The system have very low consumption values for electricity, water and chemicals. The operating costs and maintenance costs are absolutely reduced. Consistently the lowest investment costs and highest value creation!
Turnkey service
PET bottles recycling and washing line is a flexible and customer-oriented recycling solution. The proposal is integrated and engineering project. Building design, overseas installation, commissioning and training are available. Machine warranty with spares in stocking and in-time delivery. Consistently quick and careful service in pre-sales and after-sales process.
Intelligent control
Intelligent automatic module control of PET bottles recycling and washing line. One Main control panel with modern Touch Display for efficient interaction of all component. Multi-language available for operating system.
