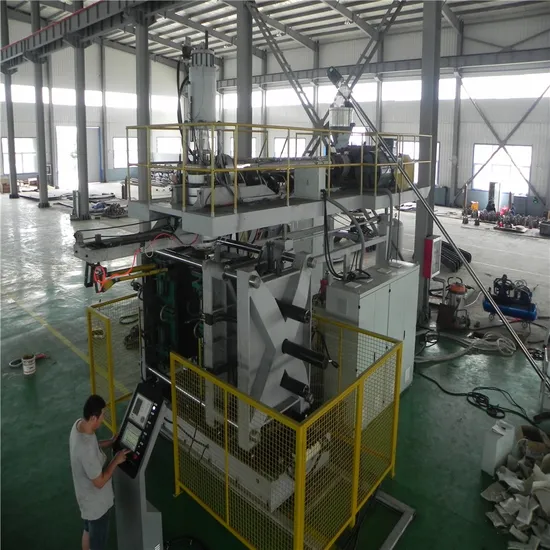

HDPE 1000L 2000L IBC Square Tank Extrusion Blow Molding Machine

Product Description

Customized Plastic HDPE Pallet/Nestable Tank/ Water Filter Tank/
Loft Tank /IBC Tank/ Hroizontal Tank/ Traffic Barrier/ Chemical
Drums Blow Moulding Machine

Product Description
1. Appliction: plastic blow moulding machines For container and tank from
50 to 5000 liter, 1-4 layers, also can be used to produce pallet, waste bin,
road barrier, septictank,and so on.
2. Mainpower: 2 new workers are enough for the whole production line,
even both are female, and two weeks training are free of charge.
3. Material: HDPE, HMWHDPE.
4. Certificate: CE, ISO9001:2008.
5. Main Markets: Asia, South America, European.
PARAMETER
Specification of the 1000L Water Tank Blow Moulding Machine

No.	Item	unit	1000L double layers
1.	Screw diameter	mm	120*2
2.	Screw L/D ratio		28:1
3.	Max.plasticizing capacity	kg/h	350
4.	Screw barrel heating zone	zone	6+6
5.	Due hard zone	zone	8
6.	Volume of accumulator	kg	36*2
7.	Accumlator type		2-in-1
8.	Platen size	mm	1420*1550
9.	Space between platens	mm	1000~2500
10.	Clamping force	kn	600
11.	Mould size	mm	1200*1500
12.	Extruder motor power	kw	55+55
13.	Hydraulic system motor power	kw	90
14.	Heating power	kw	38
15.	Plastic material		HDPE
16.	product layer	layers	2
17.	Tank volume	liter	1000
18.	Machine size(L*W*H)	m	6.8*5.3*5.2
19.	Machine weight	ton	21.6

PAYMENT TERMS
FOB Qingdao port, China
30% deposit against the contract by T/T should be paid before the order;
70% balance should be paid off by T/T after inspection before delivery;
CONFIGURATION

Parison Control Thickness Control	MOOG	Japan
PLC	SEIMENS	Germany
Temperature Control Module	SEIMENS	Germany
Servo Valve & Servo Transducer	MIRAN	Italy
Inverter	SEIMENS	Germany
Hydraulic Oil Seal	DZ	Taiwan
Intermediate Relay	OMRON	Japan
Pneumatic Valve	AIRTECH	Taiwan
Hydraulic Pump & Valve	YUKEN	Japan
Pneumatic Switch & Contactor	SEIMENS	Germany
Screw Motor	SEIMENS	Germany
Reducer	GUOMAO	China

DELIVERY TIME
4 months after the down payment;

TRAINNING
The Buyer could dispatch their operators to the Seller's factory for training, including
Machine operation, Maintenance & simple repairs;Or against the requests of the Buyer,
The Seller's technician could train the Buyer's operators in the Buyer's Factory in the
Periods of installing & adjusting;
The training is free of charge;

INSTALLATION & ADJUSTMENT
The Seller could dispatch an engineer against the requests of the Buyer to install and
Adjust the machines for One week in the Buyer's factory.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's food & board while installation in buyer's
Factory.

GUARANTEE
The guarantee time is one and half year after the machines normally works in the
Buyer's factory, if only the Problem is cause due to quality control or any reason by the
Seller. We will supply replaced parts free of Charge and our engineers will guide you
How to solve the problems.
Any problem caused due to irregular operation or incorrect maintenance by the Buyer
Won't be listed in Guarantee coverage.

---
