Max. Module 12mm 3 Axis CNC Gear Rack Milling Machine with Siemens 828d for Cylinder Piston/Car Steering Rack Processing

Product Description

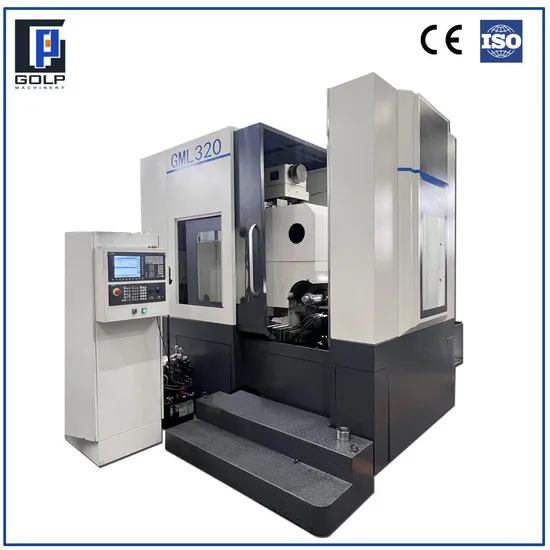

CNC rack milling machine is a special machine tool for the processing of rack, which is suitable for the tooth shape processing of cylinder piston and automobile steering gear rack.
The machine has the ability to complete 5 processes at one time (i.e. milling plane, side, tooth milling, chamfering, edge trimming), with high machining efficiency and stable precision.
The machine tool consists of bed, column, spindle box and other major components, and is equipped with a separate hydraulic system and chip removal, cooling system, independent floor-standing electrical cabinet placed on one side of the machine tool.

Max. processing module	12mm
Max. machining length	320mm
Machining angle range	± 25 ° (fixture guarantee)
Spindle speed	40~350r/min
Max. loading width	300 mm
Milling cutter diameter	¢ 180 + 2 times the depth of the tool ~ ¢ 320 mm
The spindle loaded tool rod diameter	¢ 60 mm
Max. stroke of Z-axis	400mm
Max. feed speed of Z-axis	500mm/min
Max. stroke of X-axis	500mm
Max. feed speed of X-axis	1200mm/min
Total power of the machine about	51KW
Outer dimensions of mainframe (L×W×H)	3300×2200×2800(mm)
The total weight of the machine tool about	10000kg

gear measuring machine testing
You can click on the image above for details.
WUXI GOLP CNC MACHINERY CO,.LTD is located in WUXI-- the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in CNC grinding machine,Die-casting machine, gear grinding machine ,gear chamfering machine ,thread turning machine,CNC Punching machines, gear measuring centering machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q: How long is the product warranty?
A: 24 months
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation.
Q: What kind of product certification do you have?
A: All our products have passed ISO9001 and CE certifications. We have strict quality inspection process before leaving our factory in order to offer the best quality machines to our customers.
Q: Do you have after sales service?
A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.
Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.

---
