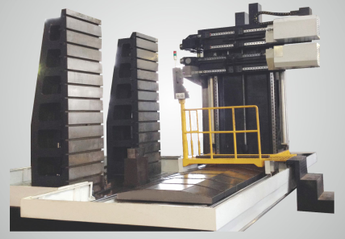

Tube Plate CNC Deep Hole Drilling Machine Tool (ZJG08-6030) with BTA and Boring

Product Description

ZJG SERIES ZJG08-6030
-Product application
Deep hole drilling machines are mainly used in the industries as following:
-Mould industry: water line hole, thimble hole, ejection pin hole, electric hole, and inclined hole, etc.
-Hydraulic machinery industry: valve, distributor and pump,etc..
-Automotive industry: cylinder, fuel supply system and other parts
-Aerospace industry: the propeller, landing gear and other parts.
-Chemical and generator industry: heat exchange parts.

Technical Specifications

Items			ZJG08-6030
Processing Capacity	Diameter of hole drilling	Gun Drill	10~20mm
		BTA	20~40mm
	Depth Range of the Hole		800mm
	Maximum Diameter		6000mm
Processing Range	X Axis Processing Range		6000mm
	Y Axis Processing Range		3000mm
	Z Axis Processing Range		850mm
Spindle	Qty of Spindle		2pcs(Optional 1~4pcs)
	Centerline Spacing (adjustable)		170-220mm
	Spindle Speed		100-3000r/min
	Feed Speed		0-3000mm/min
Power	Spindle Motor		15kw
	X Axis Servo Motor		40N.m
	Y Axis Servo Motor		40N.m
	Z Axis Servo Motor		22N.m
	W Axis Servo Motor		22N.m
	V Axis Spacing Servo Motor		30N.m
	Total Power		40kw
Cooling System	Pressure Range		2-10MPa
	Flux Range		10-200L/min
	Capacity of Oil Tank		2000L
Working Table	Surface Size		6000×4000mm
	Burdening		40T
	Size of Standing Board		1400×800×6000 mm
	Qty of Standing Board		2pcs
Machine Tool	Weight		80T
	Measurement		6500×12000mm
	Height of Machine Tool		6000mm

Company Profile
Nanyang Zonjet CNC Technology Co., Ltd, located in Nanyang City, Henan Province, is one of the most important industrial projects in Nanyang. It is a garden style modern factory, covering an area of 5,000 square meters, including 3,000 square meters for productive land. There are 2 production bases in Nanyang, Henan and Dongguan, Guangdong. Integrating product development, manufacturing, customer service and all the resources, there is a core value system of full rage of service in Zonjet.
Zonjet CNC Technology Co., Ltd, focusing on area of CNC deep-hole drilling, has been developing in a high speed since established, and Zonjet has become a very effective brand name in the industry. Taking the need of customers as direction for product design and positioning, the function and specification of our products meets the demands of all users in different areas. Customizing products also creates the highest economic benefits for users. Main products: three-axis CNC deep-hole drilling machine tool, four-axis multifunctional deep-hole drilling machine tool, five-axis drilling and milling center, six-axis drilling and milling machine tool, tube plate machine tool, shaft deep-hole drilling machine tool and other deep-hole drilling machine tools for special industries.
