Basic Info.
Engraving Head Speed Adjustability
Small Adjustable Range
Certification
CE, ISO, BV, TUV
Application
Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry, Ice, Wood, Plastic, Foam, Light Metal
Applicable Material
Wood, Stone, Glass, Ice, Soft Metal, Plastic, Foam
X,Y, Z Working Size
150mm(Diameter)*2000mm(Length) Can Be Customerized
Pindle Power
11kw Water Cooling Spindle
Operating System
4 Axis Ncstudio/ 5 Axis Syntec
Transport Package
Plywood Case
Specification
working size 500mm(diameter)*2000mm(length)
Production Capacity
800sets/Year
Product Description

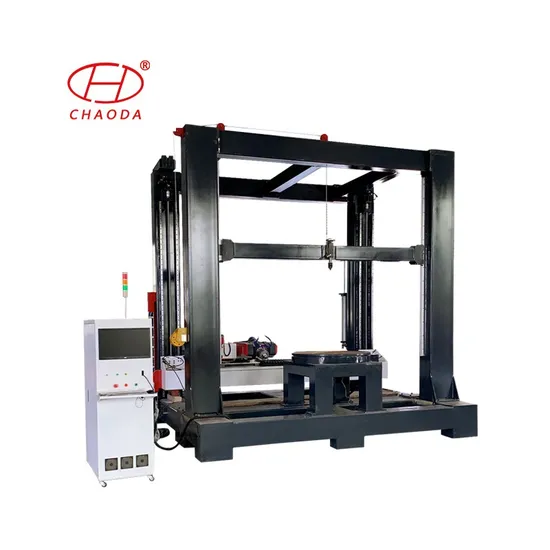

5D 4D Big Stone Figure, Statue, Column Sculpting CNC Router Machine with Vertical Turning Milling Platform and Stone Saw
Heavy duty steel structure, keep machine with very good stability. Adopt top quality machine parts,to make machine with high performance and durability. Machine is with a big 5 axis rotary device, can process different kinds of 3d stone statues sculptures roman columns corbel pilasters cylinders pillars... With saw blade function,for fast rough machining,10 times saved working time. Advanced Syntec control system,very stable and convenient to use.
Model No.
| JCS1520R 5AXIS
|
Lathe bed
| heavy duty steel structure
|
Table
| No
|
Rotary Working size
| 1500mm diameter, 2000mm length
|
Spindle power
| 11kw water cooling spindle
|
Spindle rotating
| 12000rpm
|
Max.travelling speed
| 55m/min
|
Max.working speed
| 15m/min
|
Control system
| 5 Axis Syntec
|
Motor
| Servo
|
Saw blade function
| yes
|
Auto oil system
| yes
|
Voltage
| AC380v,3 phase,50Hz
|
It can work on many materials like Marble, Granite, Artificial Stone, Terrazzo, Limestone, Sandstone,
Travertine, Quartzite, Slate, Grindstone ,Jade, Crystal, Glass, Acrylic, Wood, PVC, EPS Foam, Aluminum block, Copper and so on.
It is mainly for stone scupture carving, stone statue engraving, stone column making etc.
1. Sample testing before shipment 2. Provide 2 days free training for each machine 3. 12 months warranty for each machine 4. Friendly English version manual and operation videos for studying 5. Free technical support by phone,email,chatting or remote 6. Engineers available to service machinery overseas
>>
