Product Details
Product Description
Product Description

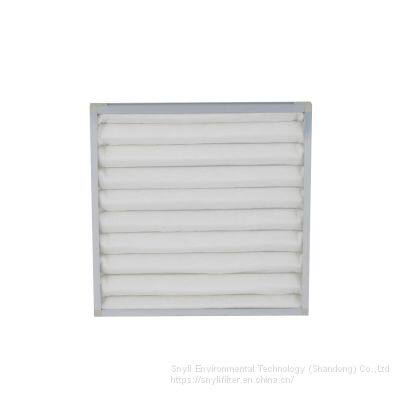

The filter material of washable pleated pre air filters is made of high quality fluffy filter cotton, with high filtration speed and large dust holding capacity, and the filter material can be cleaned repeatedly.
Frame material: galvanized frame, aluminum alloy frame, plastic frame or stainless steel frame
Frame thickness: 10/21/46/96 etc.
Filter material: imported polyester synthetic fiber
Maximum temperature: 98℃
Maximum temperature: 100%
Efficiency:G3/G4/G5(EN779)
The size of Washable Plate Air Filter can be according to customer requirements
Application
AC ventilation system of offices, meeting rooms, hospitals, shopping centers, sports centers, airports and residence etc.
The Size Of Washable Panel Air Filter
Model
| Actual size
W×H×D(mm)
| Air flow(m³/h)
| Initial P.D.(Pa)
|
G3
| G4
| F5
|
CG3B-17KX-ZM10A
| 290×595×10
| 1700
| 73
| 89
| --
|
CG3B-28KX-ZM10C
| 290×595×10
| 2850
| 73
| 89
| --
|
CG3B-34KX-ZM10D
| 595×595×10
| 3400
| 73
| 89
| --
|
CG3B-17KX-ZM21A
| 290×595×21
| 1700
| 73
| 89
| 129
|
CG3B-24KX-ZM21B
| 493×493×21
| 2400
| 73
| 89
| 129
|
CG3B-28KX-ZM21C
| 493×595×21
| 2850
| 73
| 89
| 129
|
CG3B-34KX-ZM21D
| 595×595×21
| 3400
| 73
| 89
| 129
|
CG3B-17KX-ZM46A
| 290×595×46
| 1700
| 65
| 78
| 110
|
CG3B-28KX-ZM46C
| 493×595×46
| 2850
| 65
| 78
| 110
|
CG3B-34KX-ZM46D
| 595×595×46
| 3400
| 65
| 78
| 110
|
CG3B-17KX-ZM96A
| 290×595×96
| 1700
| 58
| 67
| 92
|
CG3B-28KX-ZM96C
| 493×595×96
| 2850
| 58
| 67
| 92
|
CG3B-28KX-ZM96D
| 493×595×96
| 3400
| 58
| 67
| 92
|
Size can be according to customer requirements
>>
