Cosmetic Perfume Filter Essential Oil Processing Mixed Frozen Perfume Making Machine

Product Description

Cosmetic Perfume Filter Essential Oil Processing Mixed Frozen Perfume Making Machine
Perfume filling line is mainly used to manufacture perfume. The production line consists of a perfume manufacturing machine, an irrigation machine, and a covering machine. The following is a detailed introduction to each machine. Customers can choose their own production machines according to their needs.

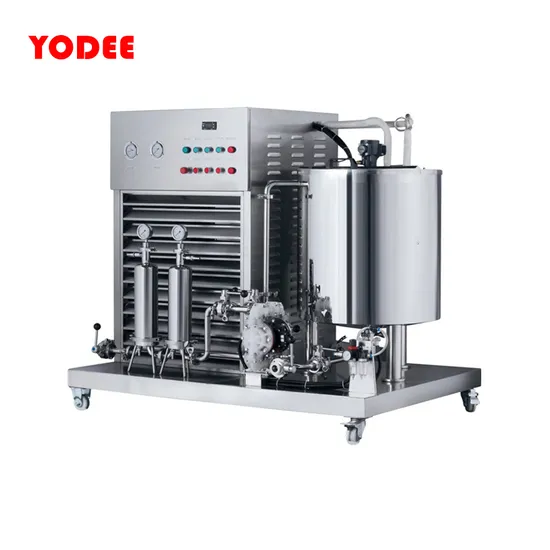

Introduction of Perfume Making Machine
The perfume making equipment is developed on the basis of bring in overseas advanced technology, it is specialized used in clarification and filtration of fluid after freezing in cosmetic water, perfume water, it is ideal equipment for cosmetic factory filtrating cosmetic water, perfume water. It adopts stainless steel 304-2B or 316L, with pneumatic diaphragm pump imported from U.S. as pressure source so as to positive pressure filtrating. The connecting pipes adopt sanitation grade polishing pipe, most are quick-install connecting way, easy to take apart and clean. Equipped with polypropylene micro porous filtrating membrane which is widely applied in cosmetic industry, research institute, hospital, laboratory etc, to clarify of little fluid and sterilization or chemical analysis, convenient and reliable.
Parameter

Capacity	100L	200L	300L	500L
HP	3P	3P	3-5P	5-10P
Voltage	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Power	2.2kw	2.2kw	3.75kw	7.5kw
Freezing Temperature	-5 Celsius degrees	-5 Celsius degrees	-5 Celsius degrees	-5 Celsius degrees
Freezing Medium	R22	R22	R22	R22
Air Source	0.5-0.6Mpa	0.5-0.6Mpa	0.5-0.6Mpa	0.5-0.6Mpa
Filter Pressure	0.2Mpa	0.2Mpa	0.2Mpa	0.2Mpa
Level 1 Filter	1.0um	1.0um	1.0um	1.0um
Level 2 Filter	0.2um	0.2um	0.2um	0.2um

Configuration 1. Stainless steel insulating frozen tank and Titanium metal pipe 2. Ultra-low temperature chiller (imported) 3. Antisepsis pneumatic diaphragm pump 4. Polypropylene microporous filtrating membrane 5. Portable stainless steel bracket 6. Sealed electronic control system & sanitation grade pipes and valves
Introduction of Semi Automatic Vacuum Perfume Filling Machine
Pneumatic semi automatic four head vacuum bottle perfume filling machine, it is used for filling floral water, perfume and other water-based materials. The machine adopts Negative pressure suction filling, the filling amount of the product is measured by the liquid level height. It is suitable for glass bottles or plastic bottles whose bodies are not easily deformed after being evacuated. Simple to operate and easy to move.
Parameter

Filling Head	Four Heads
Filling Speed	10-40bot/min
Filling Volume	5-1000ml
Height of Using Bottle Body	≤250mm
Applicable Bottle Diameter	≤φ90mm
Diameter of Bottle Mouth	≥5mm
Filling Accuracy	±1%
Machine Size	650x650x1650mm
Gross Weight	85kg

Introduction of Semi Automatic Perfume Capping Machine
The perfume capping machine is a tightening type closing machine, which uses a chuck to close the bottle cap and fasten it on the flange of the bottle mouth. It is suitable for closing the cap of spray type and perfume bottles. The whole machine consists of a body, table, clamping device and pneumatic control system.
1. Compact structure, even closing, good sealing.
2. The cap is positioned accurately and the surface is free of wear.
3. Adopt pneumatic control, easy to operate and maintain.
Parameter

Applicable bottle size	L: 30-300mm W: 5-100mm
Working Method	Pneumatic
Capping speed	10-25bot/min
Air Source	0.4-0.6MPa
Torsion	4-8kg/cm(standard)
Mould size	14 16 19 21mm (Customized)
Machine Size	380x500x700mm
Machine Weight	32kg

If you cannot accurately describe your needs, please send an inquiry directly to YODEE, the YODEE team will recommend suitable equipment for you according to the customer's limited description, or customize the equipment as required. Please write your requirements and information to Contact YODEE directly at any time, the YODEE TEAM will respond you within 12 hours.
About YODEE
YODEE was born in Guangzhou, which has the tittle of world processing factory in 2012. Through te design, manufacturing and sales experience accumulated in the past ten years, we have a complete factory, an excellent team and many very important domestic and foreign partners.
YODEE's equipment mainly uses SUS304 and SUS316 stainless steel. After completing the selection of material, YODEE will cut according to the drawings of the machines required by each customer and according to the specifications and sizes. we try to use full-page stainless steel materials instead of spliced stainless steel materials.
Preliminarily rough grinding and polishing product, use sand abrasice to grind the workpiece with rough surface to remove the macro uneven surface. Next, futher pokish on the basis of rough grinding to remove rough grinding marks. so that the surface of the workpiece is gradually smooth and bright. Finally, so that the workpiece can achieve the most ideal brightness and aesthetics.
After-sale Service
1. YODEE products will provide a one-year machine warranty service, and accessories will be replaced free of charge.
2. YODEE will provide lifelong machine technical support and technical support services for the later transformation of the old factory.
3. YODEE will provide engineers to guide the installation of equipment and equipment maintenance training services at the customer's factory if necessary.
4. YODEE can accept customer engineers to Chinese factories for equipment training.
Packing
1.Stretch protective film protect machine from collision.
2.The bottom support strengthens.
3.Nailing Complete
4.Loading and shipping
Shipment Service
1. If you have a transportation agent, you can directly arrange to come to our company to pick up the goods.
2. If you do not have a transportation agent yet, YODEE will provide you with different ways of machine transportation services (sea, air, express, rail transportation) according to different situations for choice.
3. Under special circumstances, if the machine exceeds the shipping size of the container, YODEE will still plan and provide you with the best shipping plan for you to choose.
Remark
All machine can provide customized service, Please write your requirements and information to Contact YODEE directly at any time, the YODEE TEAM will respond you within 12 hours.

---
