Air Reduced Small Frame Induction Russia Ukraine GOST Standard Asynchronous Electric Motor

Product Description

Product Description

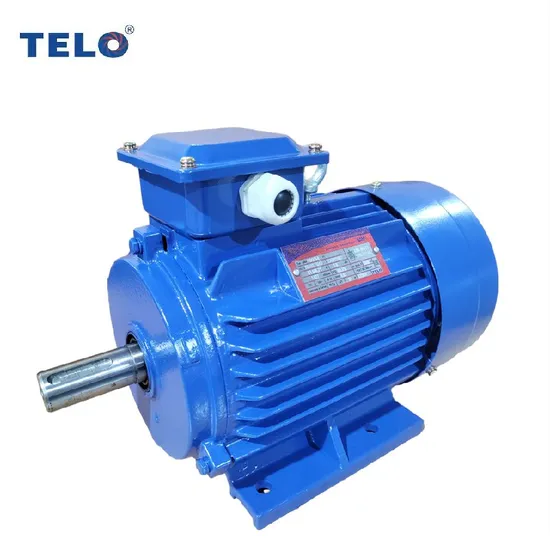

AIR Reduced Small Frame Induction Russia Ukraine Gost Standard Asynchronous Electric Motor
TL GOST Standard three-phase asynchronous electric motors were introduced as an updated design, basically in conformity with IEC standards, but also combining other standards of electric motors in Russia and other eastern European countries. It fully absorbed the advanced technology of electric motors in the world. TL.GOST Standard series motors with IP55 protection degree, class F insulation, and good function of energy saving can reach the high-efficiency class in Europe. It is an ideal energy-saving product. Moreover, it has other good features like high starting torque, low noise, optimum structure, unique appearance, convenient operation, and so on.TL- GOST Standard motors with the mounting dimension in accordance with standard IEC60034 and DIN42673, is identical to the performance and mounting dimension of GOST R51689-2000.TL GOST Standard motors can be widely used in various kinds of general-use machinery like compressors, fans, pumps, machine tools, mills, transportation machines and so on, and can also be used in hazardous areas with oil and chemical, steel plants, marine industry, and mining industry.

Description	Standard
Type	Squirrel cage, Totally Enclosed Fan Cooled, TEFC, Induction motor
Power Rating	0.18 to 315 kW; 2,4, 6, 8 Poles
Efficiency	IE2
Frame size	56 to 355 mm
Frame materials	Cast Iron body
Enclosure	IP 54 or IP 55
Insulation class	Class F (optional: Class H)
Frequency	50Hz/60Hz
Direction of rotation	Bi-directional
Terminal box	Top
Ambient temp.	-15ºC to +40ºC
Altitude	Below 1000m sea level
Performance Duty	S1, continuous duty, standard

Application
Company Profile
Certifications
Our Advantages
FAQ
1. Are you a manufacturer or trading company?
Manufacturer and we have focused on developing and producing electric motors for more than 20 years. Welcome to visit us at your convenience or during your business trip to China
2. ls a customized service available?
Of course, OEM & ODM both are available.
3. What certificates do you have? CE, CCC, ISO9001, etc
4. Can you supply a sample for testing market? Yes, we are a professional manufacturer and can accept samples and small orders.
5. What is your delivery time? It refers to the specific products. Usually, we deliver the motors in 10-45 days, please get in touch with us for details.
6. Payment terms? T/T, L/C at sight, Western Union, etc.
7. Can mix different models in one container? It's ok, we will calculate the space and give suggestions.
8. How does your factory do regarding quality control?
Quality is of the first importance and we always pay high attention to quality control from the beginning to the end of the production. Each product is completely assembled and carefully tested before packaging and shipping
Feel free to contact us!^_^~

---
