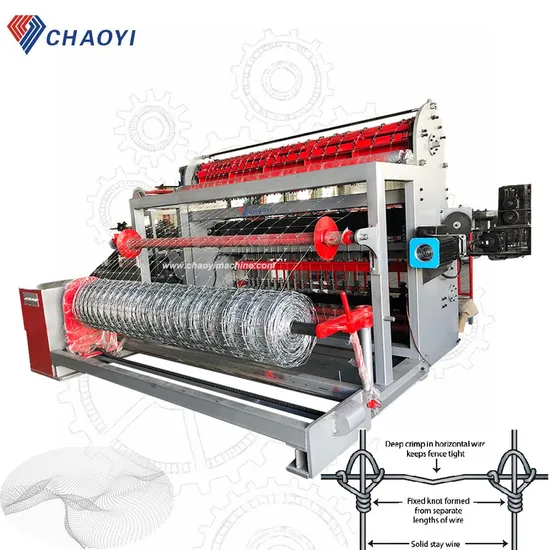

New Type Automatic Grassland Fixed Knot Fence Weaving Making Machine

Product Description

Product Description
New type automatic grassland fixed knot fence weaving making machine Field Game fence (fixed knot) machine is used to weave wrap-around fence. It can weave the diameter wire and weft wire together automatically. It is developed after many years since our company has independent intellectual property rights, self-made. It uses sophisticated computer control, advanced production technology. With novelty, high degree of automation, operational safety and reliability, easy operation, long life and low prices. Product can be made neat and beautiful, diverse specifications.

SPECIFICATIONS FOR weaving making machine
Special type can be made according to clients' requirements
Model Parameters	18-2080	20-2438
Maximun fence width	2080mm(82'')	2438mm(96'')
Line wire spacings	76mm(3'')x6+100mm(4'')x2+127mm(5'')x2+150mm(6'')x3+178mm(7'')x4	76mm(3'')x6+100mm(4'')x2+127mm(5'')x2+152mm(6'')x3+178mm(7'')x6
Line wire spacing	18	20
Stay wire spacings	75mm,150mm,225mm,300mm,450mm
Edge wire size	Φ2.5-3.0mm
Line wire size	Φ2.0-2.5mm
Stay wire size	Φ2.0-2.5mm
Knot wire size	Φ2.0mm, Φ2.2mm
Max length of roll	100m/roll
Stay wires per minute	25row/min
Total Machine weight	7Ton	8Ton
Approximate Floor Area Pequired	10mx20m	11mx22m

It can weave various kinds of New type automatic grassland fixed knot fence weaving making machine specifications as follow:
Application

Horse grassland fixed knot fence	Grassland fence	Deer fence

Product Detail

Bening fence Part	Alarm sensors	PLC control

PLC Touch Screen Controller Fixed Knot Fence machine is controlled by PLC automatic controller, so only one person is needed to operate it.	Making mesh Agency 1.Automatic Weaving fixed knot fence, as the picture.	Input wire agency 1.Automatic Fixed Knot Fnece Machine Input wire, as the picture. 2.Automatic Mesh size mould, as the picture. Fence Rolling Agency 1. Automatic fence rolling, as the picture. .
