Automatic UV Spot Printing Machine Mx-1020

Product Description

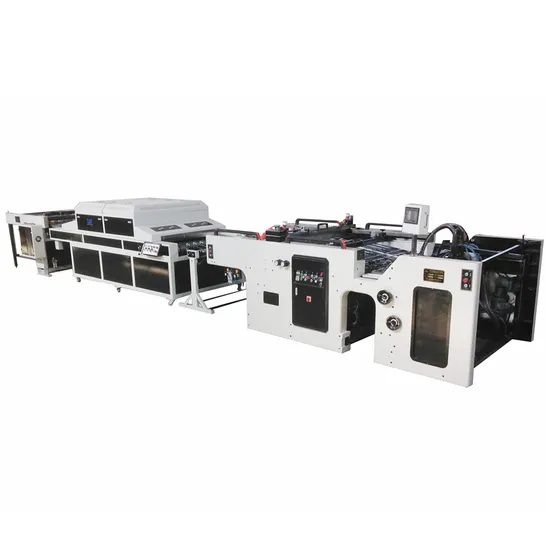

Product Description Swing Cylinder Automatic Cylinder Screen Printing Machine Auto swing cylinder screen printing machine series is a well-recognized auto flat screen press with high speed and high precision, ranking top in China suppliers.It is advantageous for well designed structure with single piece or streamline paper feeding equipment.Frequency variance control motor and whole-process auto close-monitoring device are equipped. It can be controlled by PLC program Panel or centralized controller.Only one person is necessary for operation, which greatly saves labor and boosts production. This machine can be used in printing soft and semi-soft material featured of 100-350 g/m2,especially with UV ink for colors such as golden and silvery of Ceramics sticker,Package,Label and Cards, and etc. It's vivid colors, stereoscopic effect and strong covering achieves a superior positions over other print presses.
Detailed Photos
Product Parameters

Model	XF-780	XF-1020
Max.printing size	780x540mm	1020x700mm
Min.paper size	350x270mm	350x560mm
Max.paper size	780x540mm	1020x720mm
Border	≤15mm	≤15mm
Paper thickness	100-400gsm	100-400gsm
Screen frame size	940x940mm	1280x1140mm
Max.printing speed	1000-3300pcs/h	1000-3000pcs/h
Weight	3800kg	5000kg
Power(kg)	3P4N 50/60HZ 380V 9KW	3P4N 50/60HZ 380V 15KW
Dimension(LxWxH)	4100x2100x1270	4570x2700x1430

Standard Equipment: Automatic paper feeder Cylinder Printing Unit UV drying and conveying system Automatic paper collecting system Sample photoes:

---
